49. Forward Clutch Piston Travel Check

Forward Clutch Piston Travel Check

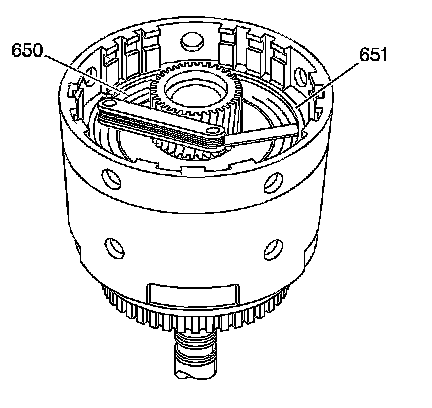

1. Use feeler gauges to check the forward clutch plate travel. Check travel between the forward clutch backing plate retainer ring (651) and the forward clutch selective backing plate (650). The forward clutch plate travel should be:
^ 245 mm Torque Converter - 0.766 - 1.756 mm (0.030 - 0.069 inch)
^ 298 mm/300 mm Torque Converter - 0.866 - 1.876 mm (0.034 - 0.074 inch)

2. Select the proper forward clutch selective backing plate (650) to obtain the correct travel. Refer to Forward Clutch Backing Plate Selection.
