Transfer Case Shield Replacement

Transfer Case Shield Replacement

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

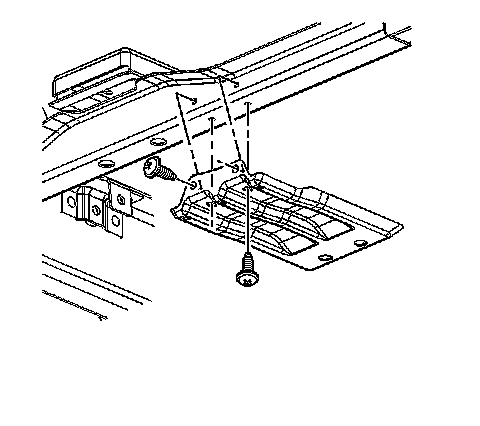

2. If the vehicle is a 1500 series, remove the transfer case shield bolts, if equipped.
3. Remove the transfer case shield, if equipped.

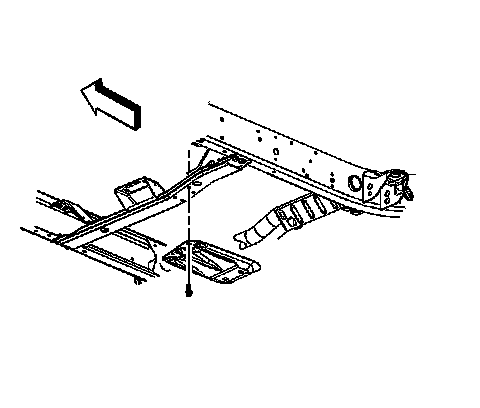

4. If the vehicle is a 2-500 series, remove the transfer case shield screws, if equipped.
5. Remove the transfer case shield, if equipped.

Installation Procedure





1. If the vehicle is a 2-500 series, position the transfer case shield, if equipped.
2. Install the transfer case shield screws.





3. If the vehicle is a 1500 series, position the transfer case shield, if equipped.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the transfer case shield bolts, if equipped.
^ Tighten the bolts/screws to 20 Nm (15 ft. lbs.).
5. Lower the vehicle.
