Bezel Replacement - Floor Console (Non-Luxury Upper)

Bezel Replacement - Floor Console (Non-Luxury Upper)

Removal Procedure

1. Remove the I/P cluster bezel.




2. Insert a flat bladed tool between the Bezel assembly and the console.
3. Pry the bezel from the console outwards partially in order to gain access to the connectors.

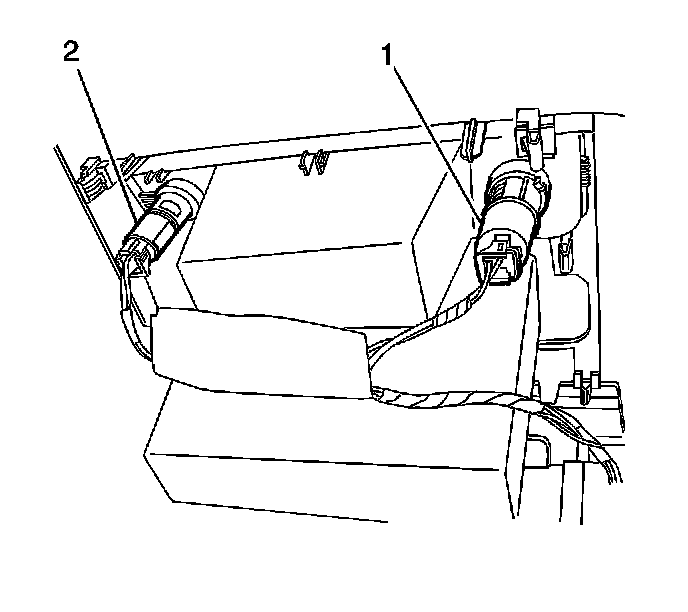

4. Disconnect the electrical connectors (1) and (2).
5. Remove the bezel from the console.

Installation Procedure




1. Place the bezel to the console.
2. Connect the electrical connectors (1) and (2).

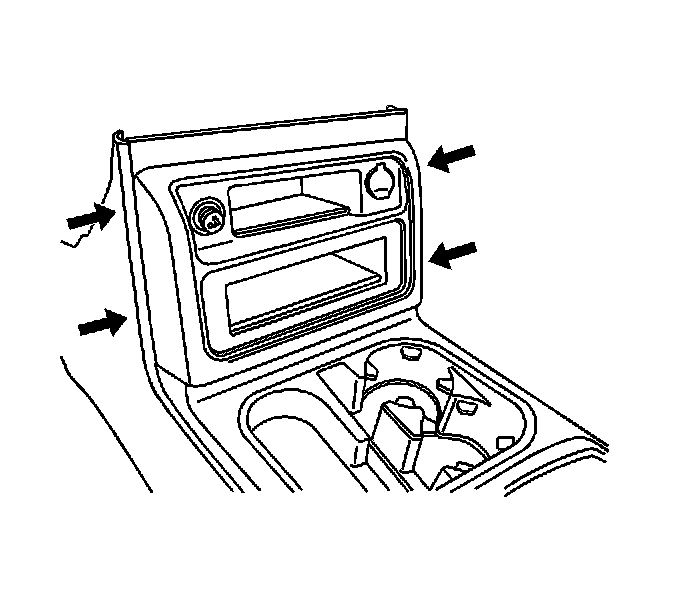

3. Install the bezel to the console pushing on the corners till the retainers click in place.
4. Install the I/P cluster bezel.
