Premium Radio - With RPO Code UQ7 Without RPO Code Y91

Power, Ground, Serial Data And VCIM:

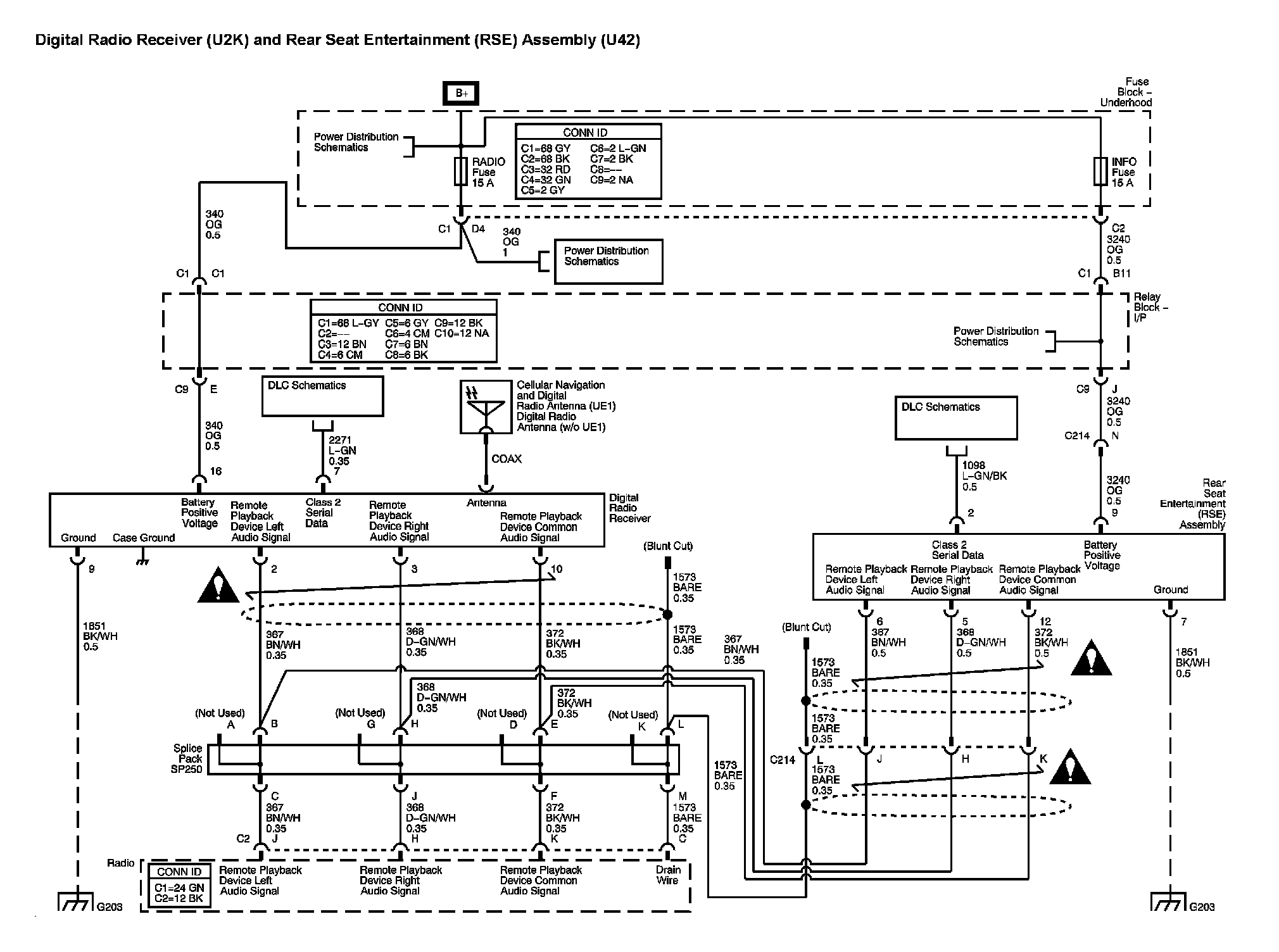

Rear Sear Entertainment (RSE) Assembly (U42):

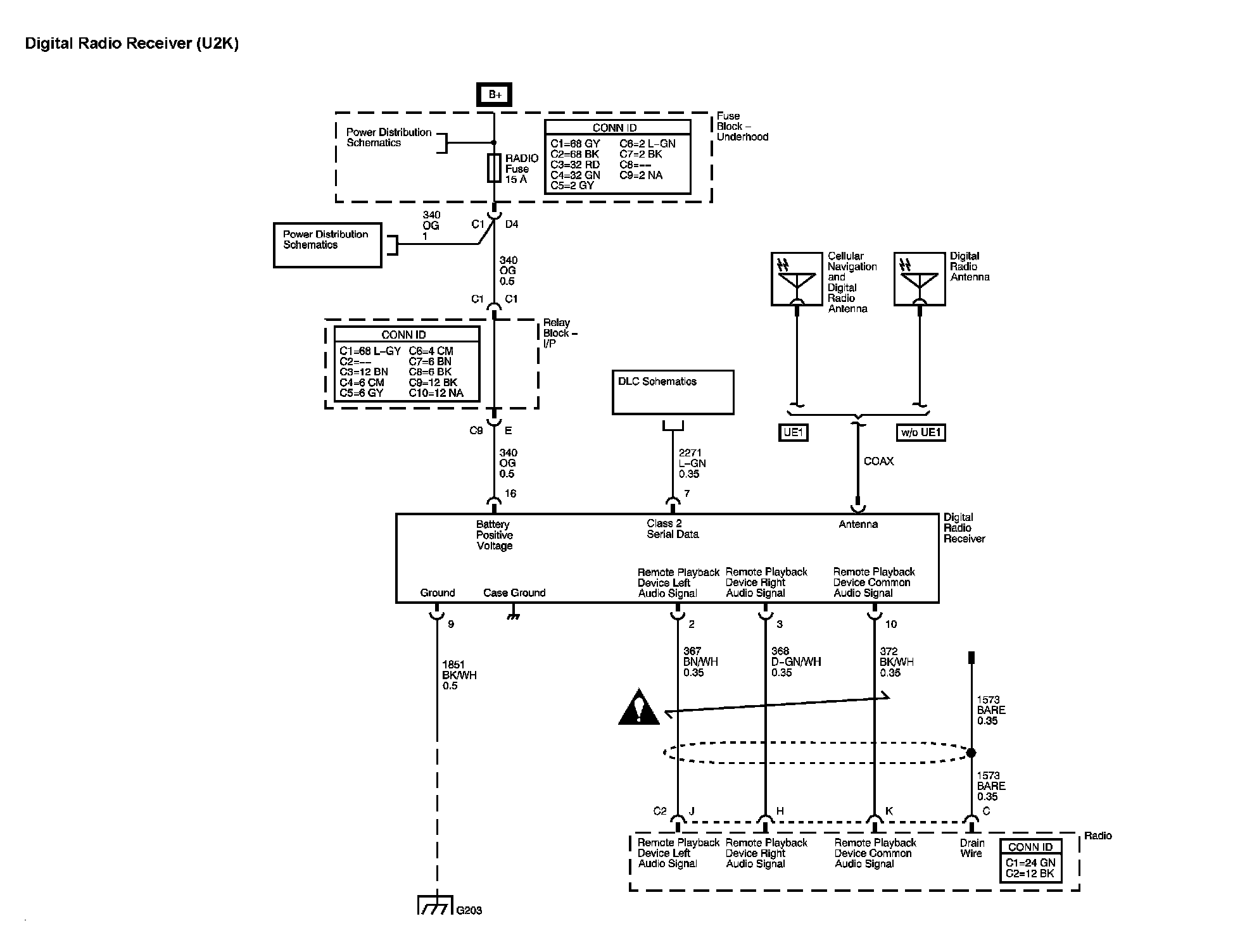

Digital Radio Receiver (RPO UK2):

Digitak Radio (RPO UK2), Rear Seat Entertainment (RPO U42):

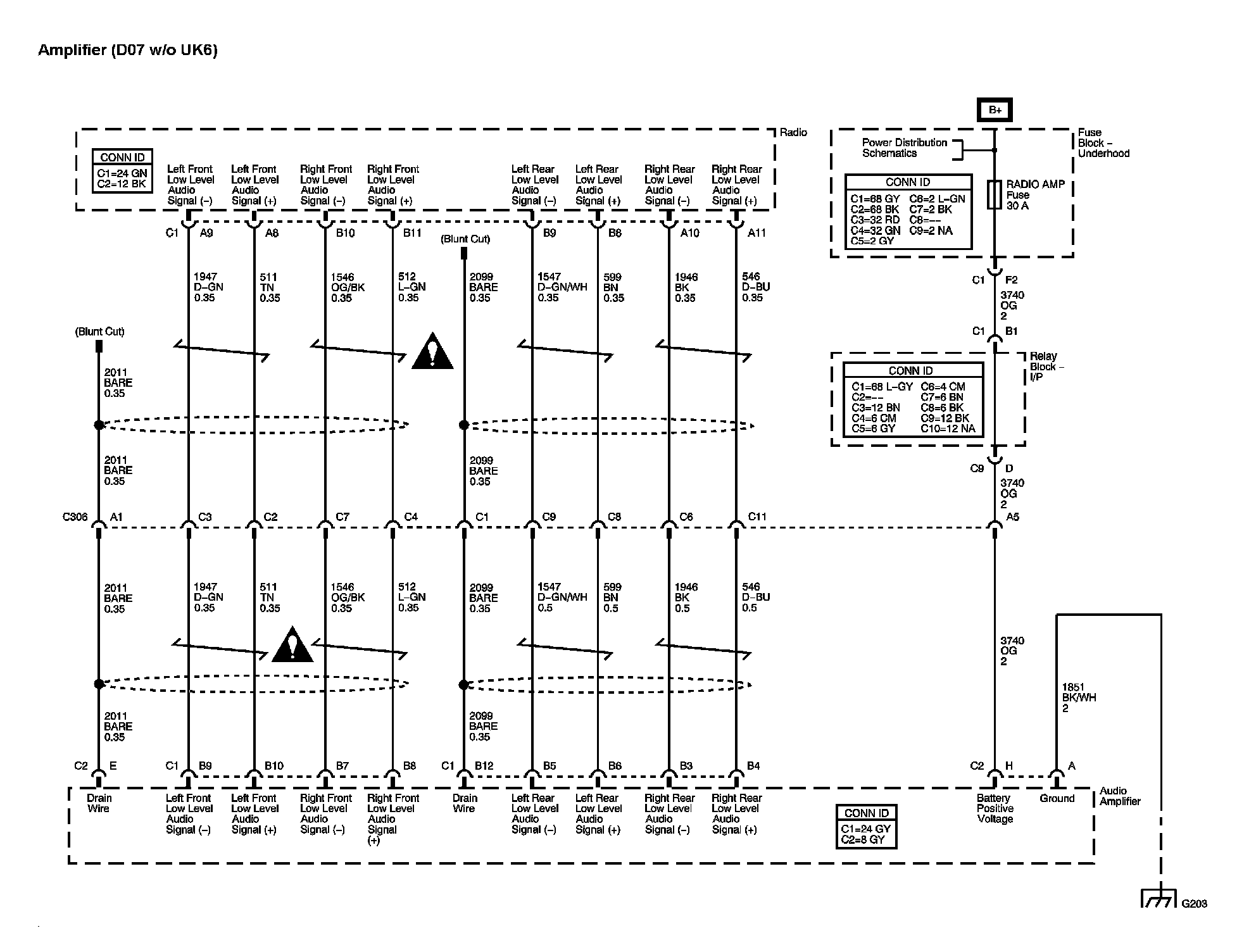

Amplifier (RPO D07 Without RPO UK6):

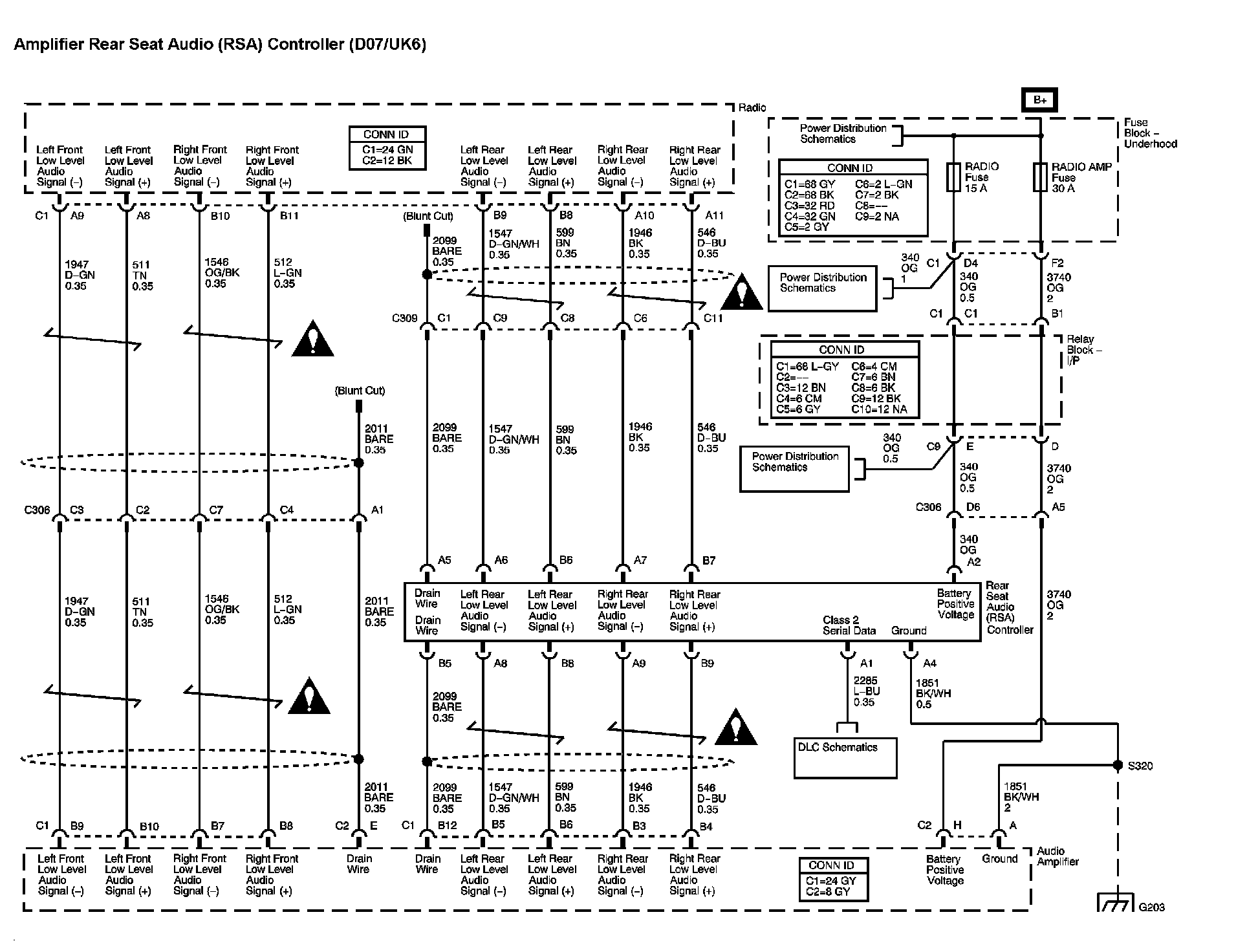

Amplifier Rear Seat Audio (RSA) Controller (RPO D07 UK6):

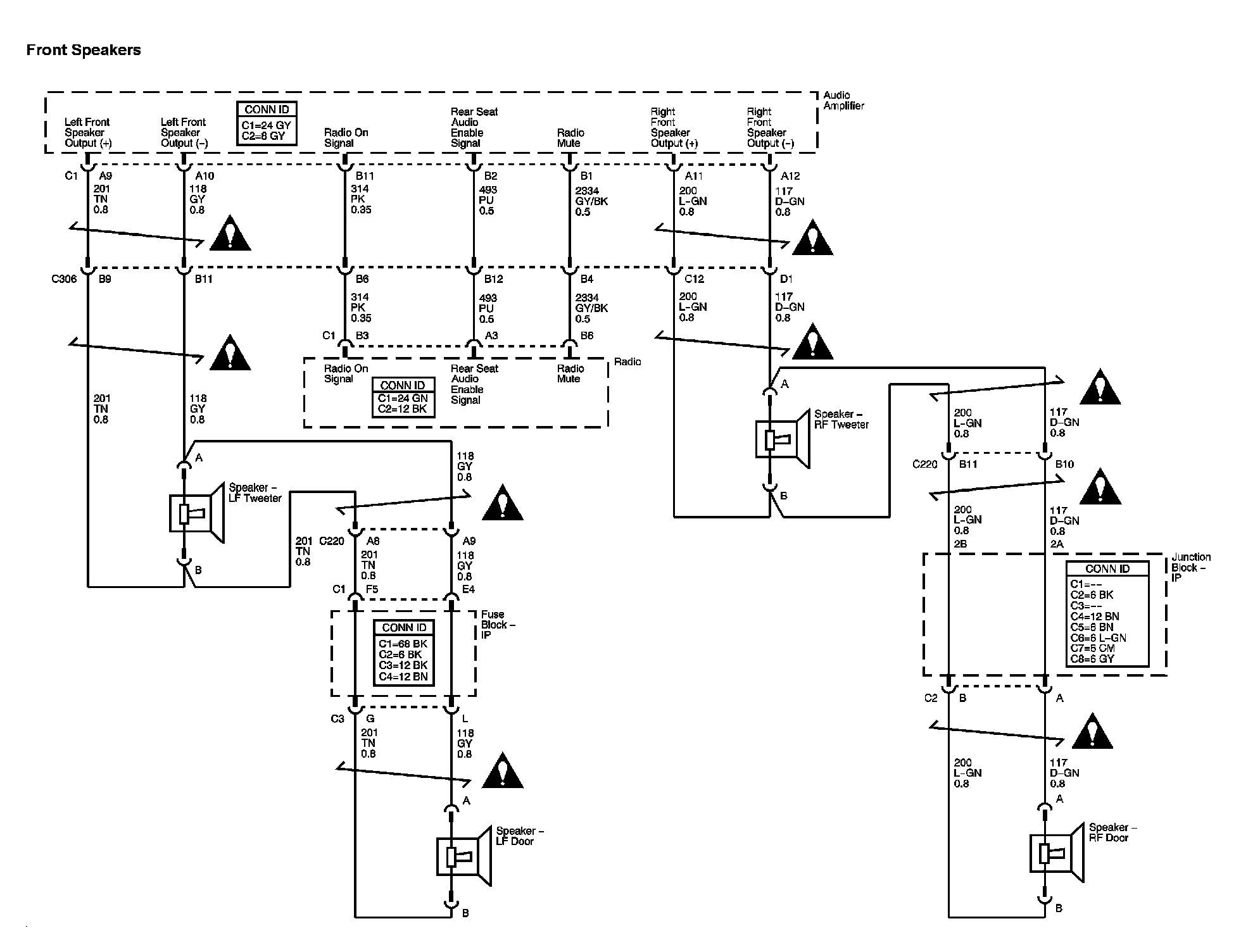

Front Speakers:

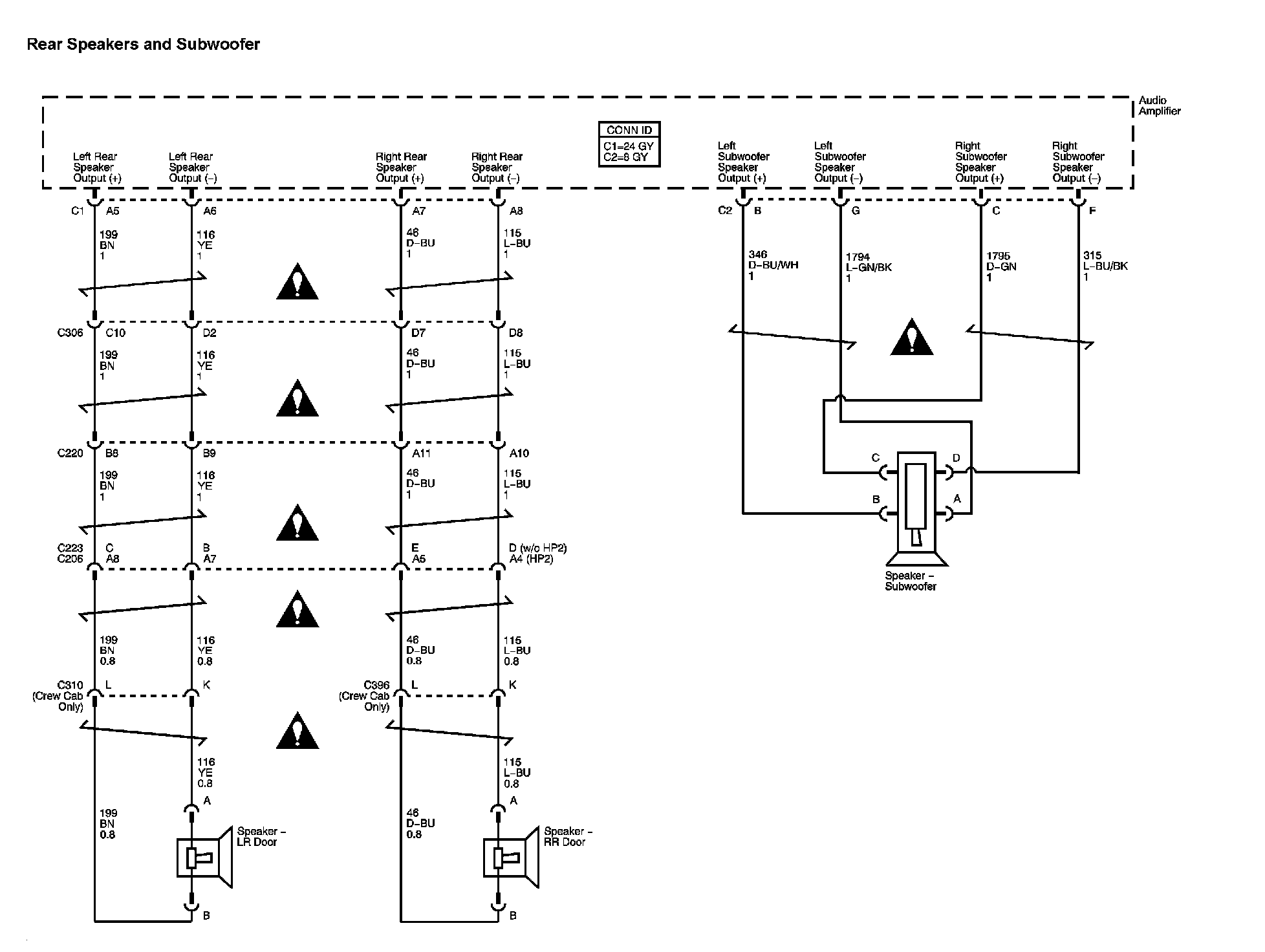

Rear Speakers And Subwoofer:

Location: The locations for the Connectors, Grounds, Splices, and grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
