25. Timing Chain and Sprockets Removal

Timing Chain and Sprockets Removal

Tools Required
^ J8433-1 Puller Bar
^ J41558 Crankshaft Sprocket Remover
^ J41816-2 Crankshaft End Protector





1. Notice: Do not turn the crankshaft assembly after the timing chain has been removed in order to prevent damage to the piston assemblies or the valves.

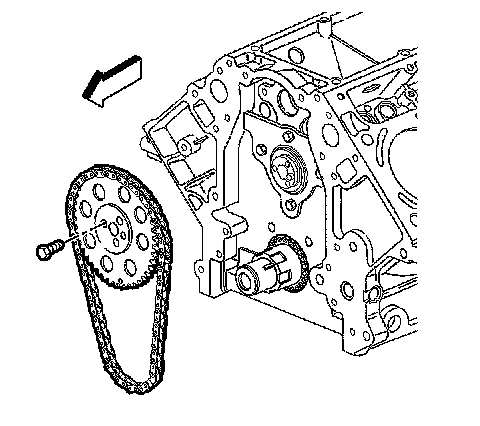

Remove the camshaft sprocket bolts.
2. Remove the camshaft sprocket and timing chain.

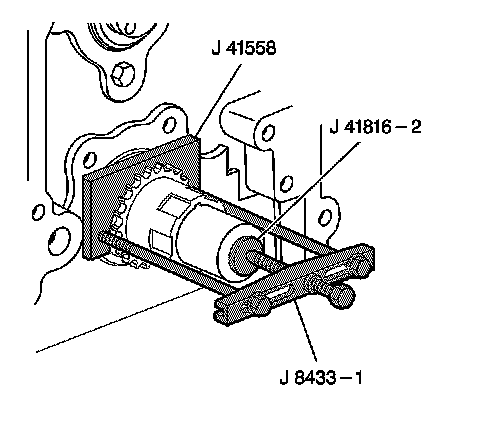

3. Use the J8433-1, the J41816-2, and the J41558 in order to remove the crankshaft sprocket.

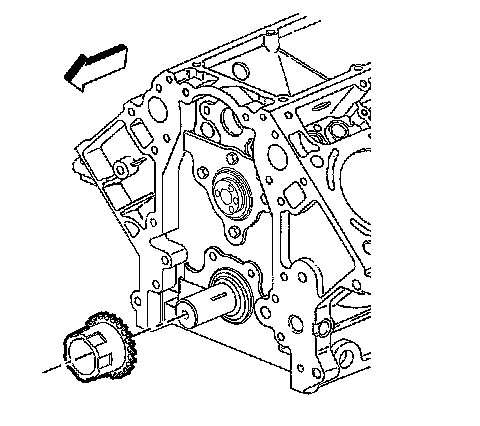

4. Remove the crankshaft sprocket.

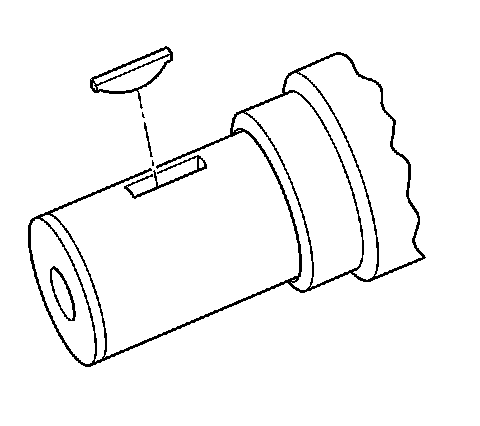

5. Remove the crankshaft sprocket key, if required.
