86. Low/Reverse Band Servo Assembly / Installation

1. Install the low and reverse accumulator piston spring (74).

Important: The low and reverse band servo piston assembly (64-73) is pushed down when tightening the low and reverse band servo cover bolts. Do not force the low and reverse band servo piston assembly (64-73) into the servo bore.

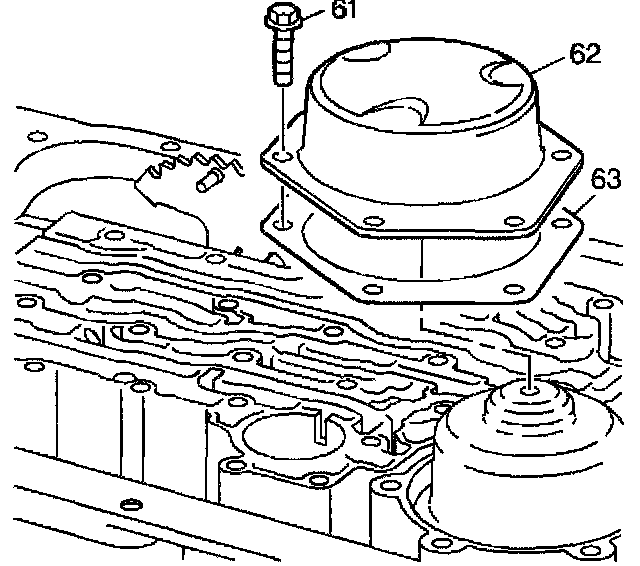

2. Install the low and reverse band servo piston assembly (64-73).





3. Install the low and reverse band servo cover gasket (63).
4. Install the low and reverse band servo cover (62).

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the six low and reverse band servo cover bolts (61).
^ Tighten the bolts to 24 Nm (18 lb ft) in an alternating pattern.
