ZF S6-650 Shift Control and Shift

ZF S6-650 Shift Control and Shift Components

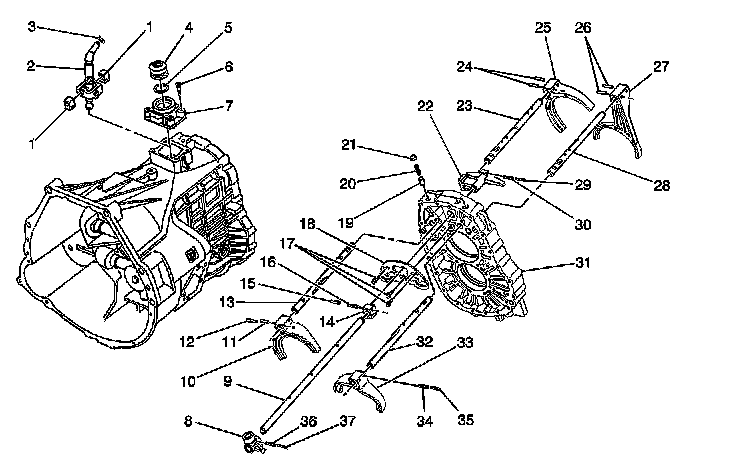

ZF S6-650 Shift Control and Shift Components:

1 - Control Lever Pivot Pin Bushing
1 - Control Lever Pivot Pin Bushing
2 - Control Lower Lever
3 - Control Lever Nut
4 - Control Lever Lower Boot
5 - Control Lever Lower Boot Retainer
6 - Shift Control Housing Bolt
7 - Shift Control Housing
8 - Internal Shift Control Front Lever
9 - Main Shift Control Shaft
10 - 4th/5th Shift Fork
11 - 4th/5th Shift Fork Outer Pin
12 - 4th/5th Shift Fork Inner Pin
13 - 4th/5th Shift Shaft
14 - Shift Shaft Block
15 - Shift Shaft Block Inner Pin
16 - Shift Shaft Block Outer Pin
17 - Shift Interlock Plate Bolts
18 - Shift Interlock Plate
19 - Shift Shaft Detent Plunger
20 - Shift Shaft Detent Spring
21 - Shift Shaft Detent Plug
22 - Internal Shift Control Rear Lever
23 - 1st/Reverse Shift Shaft
24 - 1st/Reverse Shift Shaft Pin
25 - 1st/Reverse Shift Fork
26 - 6th Shift Fork Pin
27 - 6th Shift Fork
28 - 6th Shift Shaft
29 - Internal Shift Control Rear Lever Inner Pin
30 - Internal Shift Control Rear Lever Outer Pin
31 - Intermediate Case
32 - 2nd/3rd Shift Shaft
33 - 2nd/3rd Shift Shaft Fork
34 - 2nd/3rd Shift Shaft Fork Outer Pin
35 - 2nd/3rd Shift Shaft Fork Inner Pin
36 - Internal Shift Control Front Lever Outer Pin
37 - Internal Shift Control Front Lever Inner Pin
