P0507

DTC P0507

CIRCUIT DESCRIPTION
The throttle actuator control (TAC) system uses vehicle electronics and components to calculate and control the position of the throttle plate. In order to decrease idle speed the TAC system closes the throttle plate reducing airflow into the engine. In order to increase idle speed the TAC system opens the throttle plate allowing more airflow into the engine. If the actual idle RPM does not match the desired idle RPM within a calibrated time, this DTC sets.

DTC DESCRIPTORS
This diagnostic procedure supports the following DTCs:
- DTC P0506 Idle Speed Low
- DTC P0507 Idle Speed High

CONDITIONS FOR RUNNING THE DTC
- DTCs P0068, P0107, P0108, P0112, P0113, P0117, P0118, P0120, P0171, P0172, P0200, P0220, P0300, P0336, P0401, P0404, P0405, P0442, P0446, P0452, P0453, P0641, P0651, P1516, P2101, P2135 are not set.
- The engine is operating for at least 2 seconds.
- The engine coolant temperature (ECT) is more than -40°C (-40°F).
- The intake air temperature (IAT) is more than -40°C (-40°F).
- The barometric pressure (BARO) is more than 65 kPa.
- The system voltage is between 9-18 volts.
- The vehicle speed is less than 4.8 km/h (3 mph).
- This diagnostic runs continuously when the above conditions are met.

CONDITIONS FOR SETTING THE DTC
- The actual idle speed is approximately 150 RPM lower than or 100 RPM more than the desired idle speed.
- The above condition is present for 15 seconds.

ACTION TAKEN WHEN THE DTC SETS
- The PCM will illuminate the malfunction indicator lamp (MIL) during the second consecutive trip in which the diagnostic test has been run and failed.
- The PCM will store conditions which were present when the DTC set as Freeze Frame/Failure Records data.

CONDITIONS FOR CLEARING THE MIL/DTC
- The PCM will turn OFF the malfunction indicator lamp (MIL) during the third consecutive trip in which the diagnostic has run and passed.
- The history DTC will clear after 40 consecutive warm-up cycles have occurred without a malfunction.
- The DTC can be cleared by using a scan tool.

DIAGNOSTIC AIDS
If the condition is intermittent, refer to Intermittent Conditions. Intermittent Conditions

TEST DESCRIPTION

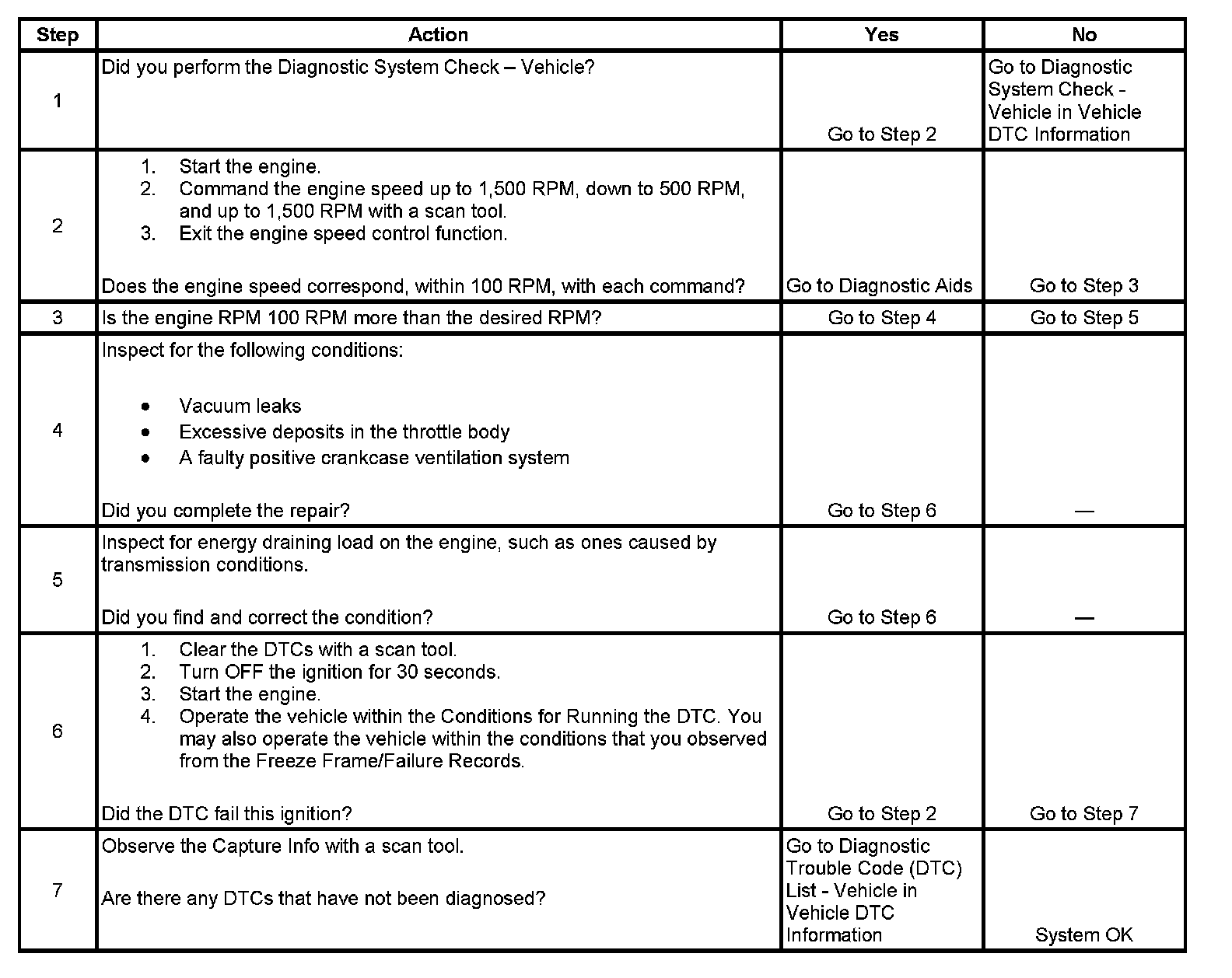

Steps 1-7:

The number below refers to the step number on the diagnostic table.
2. This test determines whether the engine can achieve the commanded RPM. If the engine does not reach the commanded RPM, the test determines whether the RPM is too high or too low.
