Driver seat Diagram

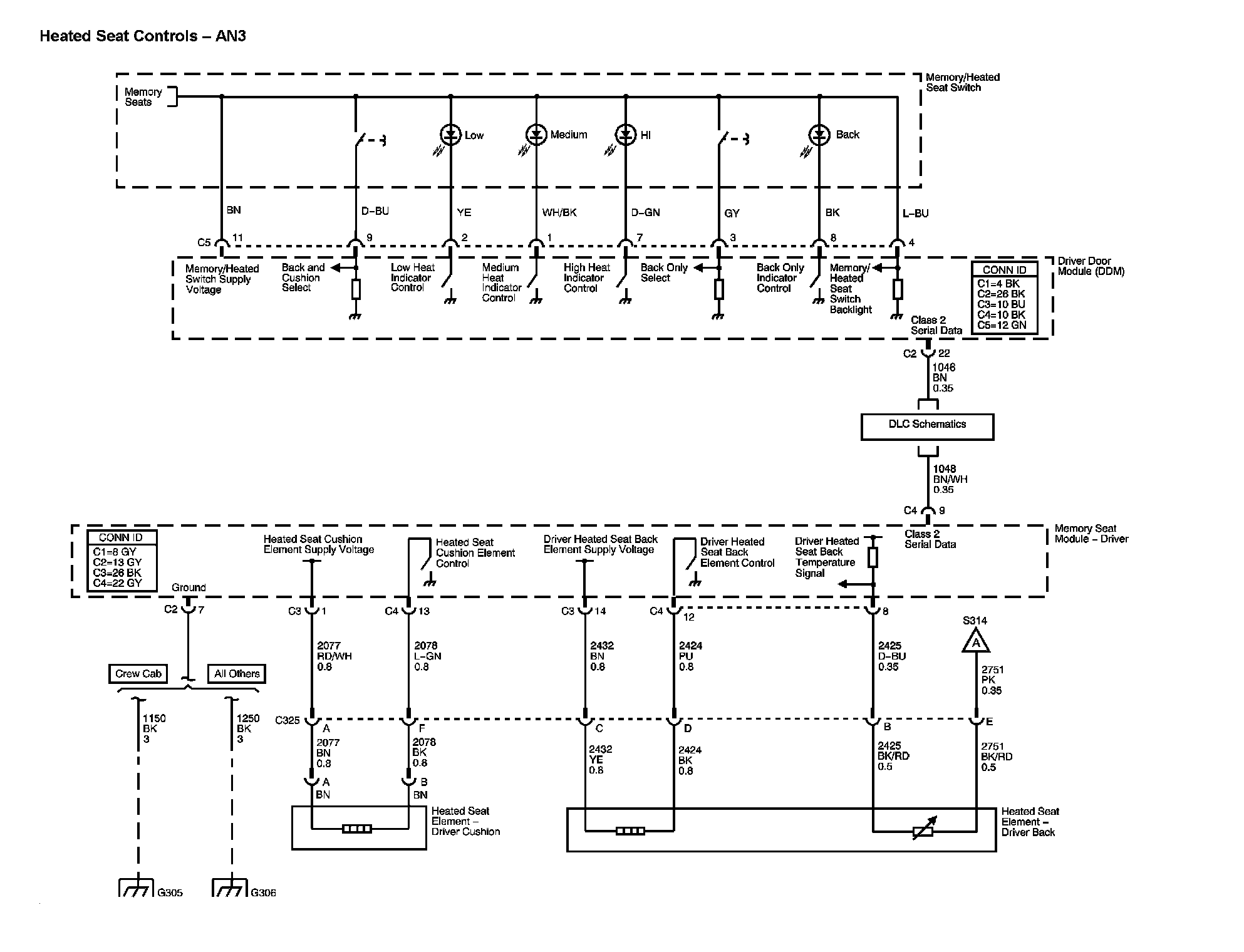

Driver Seat Diagram 1:

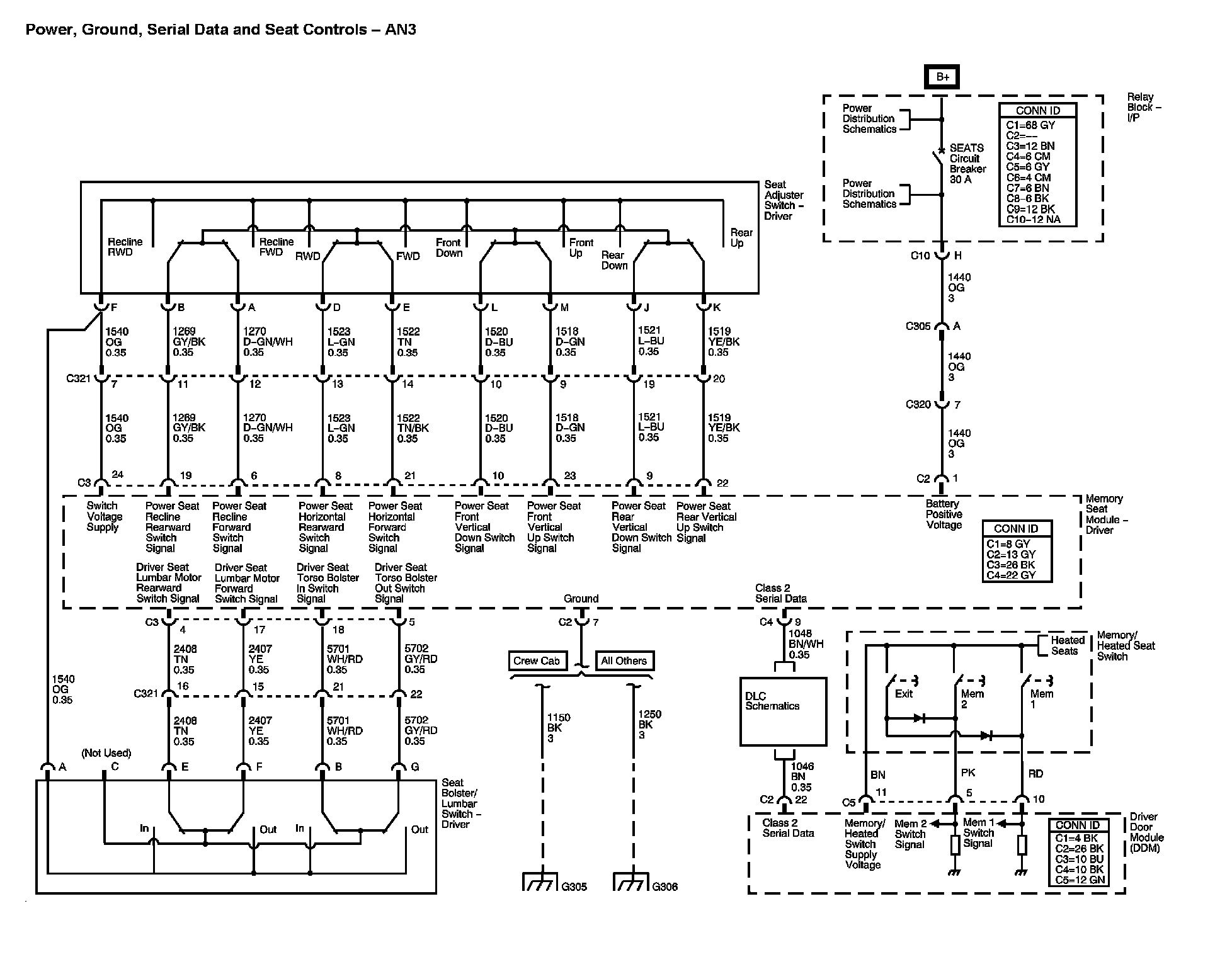

Driver Seat Diagram 2:

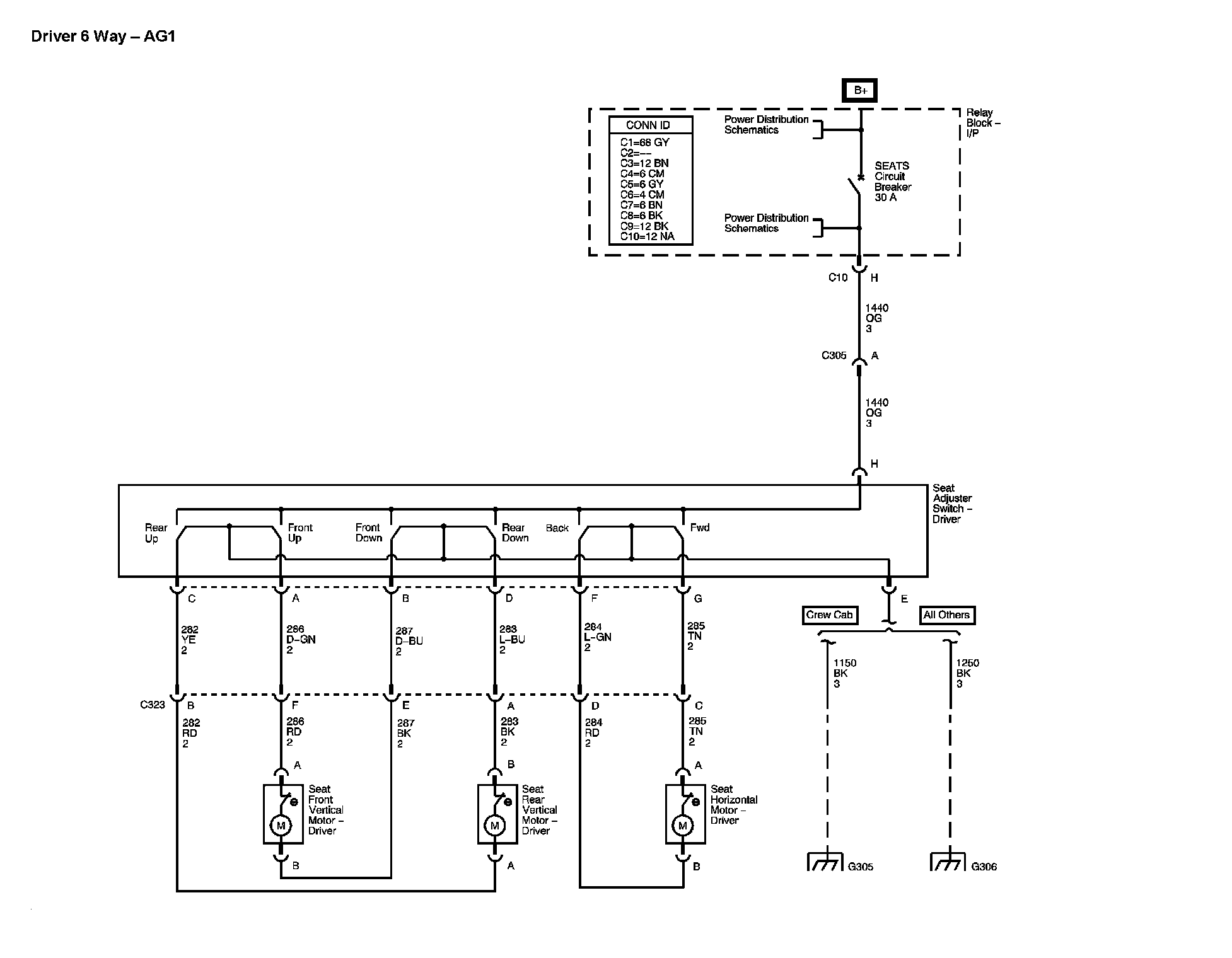

Driver Seat Diagram 3:

Driver Seat Diagram 4:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagram can be found via their numbers at Vehicle Locations. Locations
