40. Camshaft Bearing Installation

Camshaft Bearing Installation

Tools Required
^ J33049 Camshaft Bearing Service Set

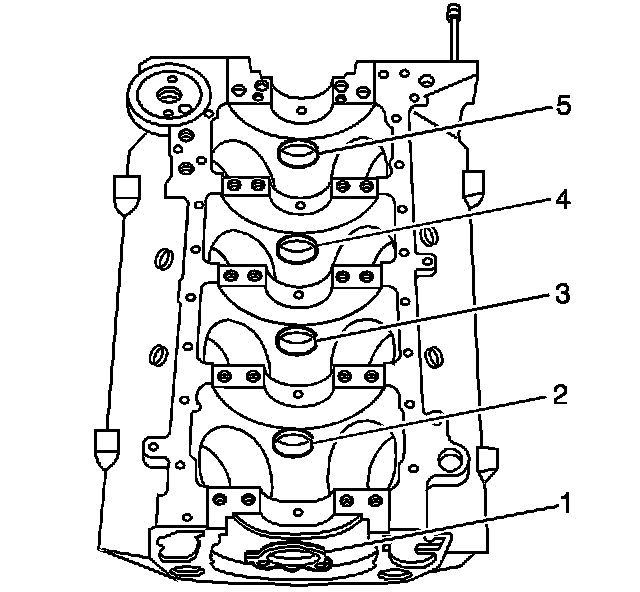

Important: The outer camshaft bearings (positions 1 and 5) must be installed first. These bearings serve as guides for the tool and help center the inner bearings during the installation process.

Ensure the correct camshaft bearing fits into the proper bore. The camshaft bearing bores may vary in size.
Ensure that the camshaft bearing lubrication hole or holes align with the oil gallery hole or holes in the block. On some engines, the oil holes may be difficult to see. Verify that the holes are aligned.

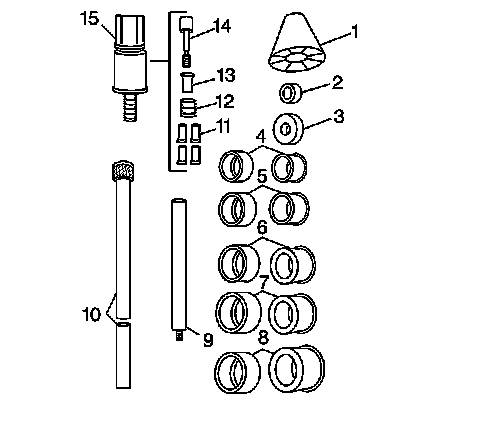

1. Assemble the tool handle (10), expanding driver (4-8), and washer (2 or 3).

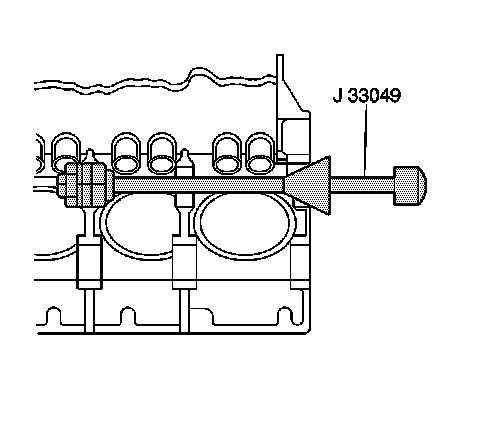

2. Insert the J33049 tool into the engine block end camshaft bearings.

3. Notice: Do not shim, scrape, or file bearing inserts. Do not touch the bearing surface of the insert with bare fingers. Skin oil and acids will etch the bearing surface.

Important: An improperly aligned camshaft bearing oil gallery hole will restrict oil flow to the bearing and the camshaft journal.

Drive the end bearings into the bore.





4. Select the expanding driver (4-8) and washer (2 or 3) from the J33049.
5. Assemble the tool.

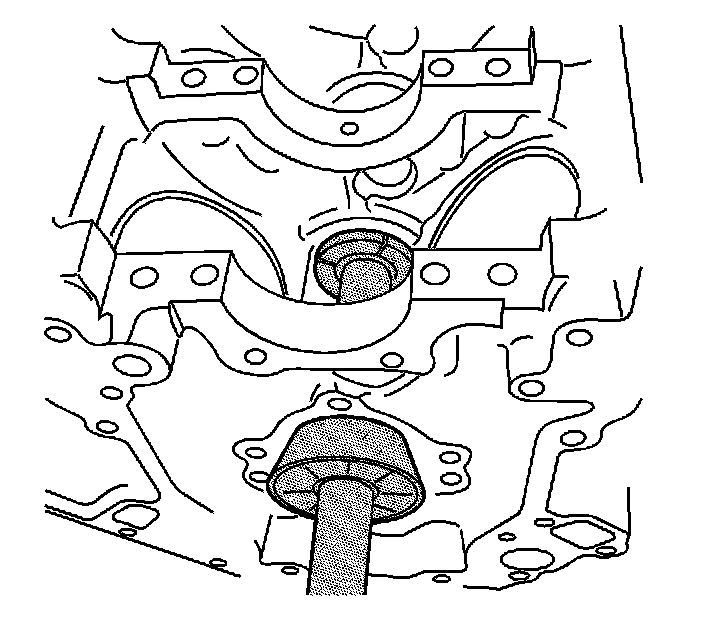

6. Insert the J33049 tool through the front of the engine block and to the inner bearing bores.
7. Install the bearing onto the expanding driver.
8. Tighten the expander assembly nut until the tool is snug in the bearing.

9. Important: The camshaft bearing oil holes must align with the oil galleries in the engine block.

After installation of the camshaft bearings, inspect the camshaft bearing oil holes for proper alignment with the oil galleries.
An improperly aligned camshaft bearing oil gallery hole will restrict oil flow to the bearing and the camshaft journal.
Align the oil lubrication hole in the bearing with the oil galleries in the engine block.
10. Push the guide cone into the front camshaft bearing bore to align the tool.
11. Drive the bearing into the bore.
