11. Torque Converter End Play Inspection

Torque Converter End Play Inspection

^ Tools Required
- J 43764 Torque Converter End Play Gauge
- J 5959 Dial Indicator
- J 5959 Rod 1/4 x 101/2 inches
- J 7872 Dial Indicator Clamp and Adaptor Rod

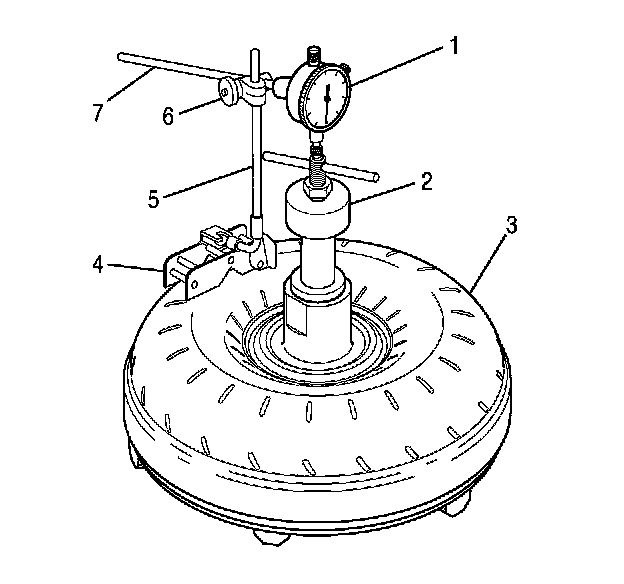

1. Position the torque converter (3) on the work table so that the pump hub is facing up.
2. Install J 43764 (2) into the torque converter hub.
3. Hold J 43764 (2) in the converter hub and rotate the center screw until J 43764 is locked into the converter hub. Do not over tighten J 43764.
4. Assemble the following tools and install the tools onto the torque converter as shown:
^ J 5959 Dial indicator (1)
^ Extension rod (7)
^ Clamp (6)
^ J 7872 Magnetic base (4)
^ Adaptor rod (5)

5. Adjust the clamp (6) so that the dial indicator (1) firmly contacts the top of J 43764 (2).
6. Set the dial indicator (1) to read zero.
7. Lift J 43764 (2) upward as far as possible.
8. Read the dial indicator (1) to determine torque converter end play.
9. Compare the measured end play with the torque converter end play specifications.
10. If the measured torque converter end play exceeds the value listed, replace the torque converter.
11. Remove the J tools from the converter housing.
