4. Transmission Extension Disassemble

Transmission Extension Disassemble

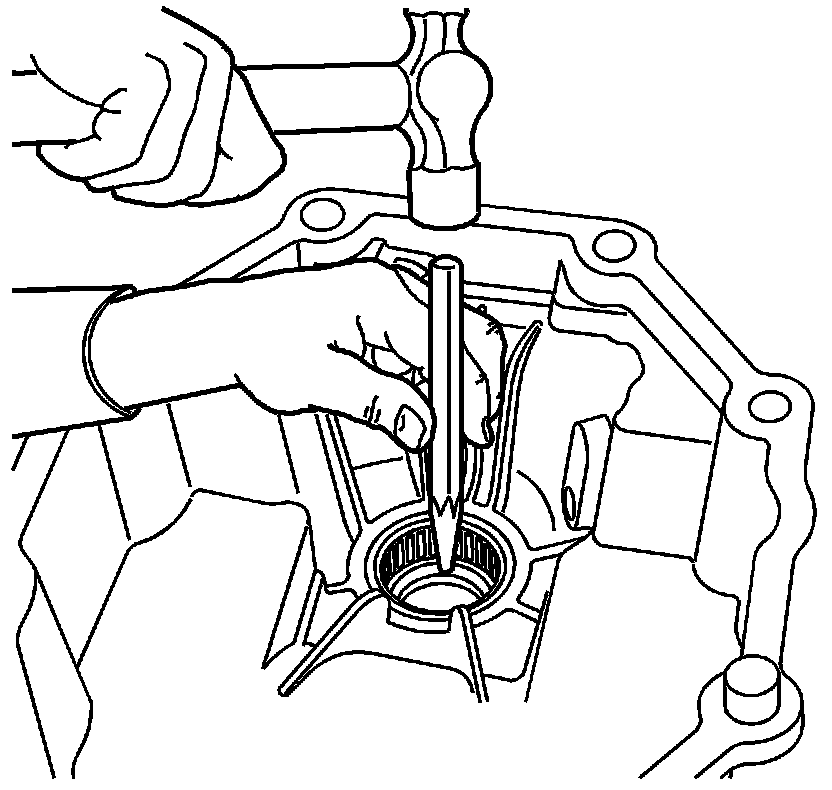

1. For the C model, using a hammer and a suitable punch, remove the mainshaft seal from the transmission extension.

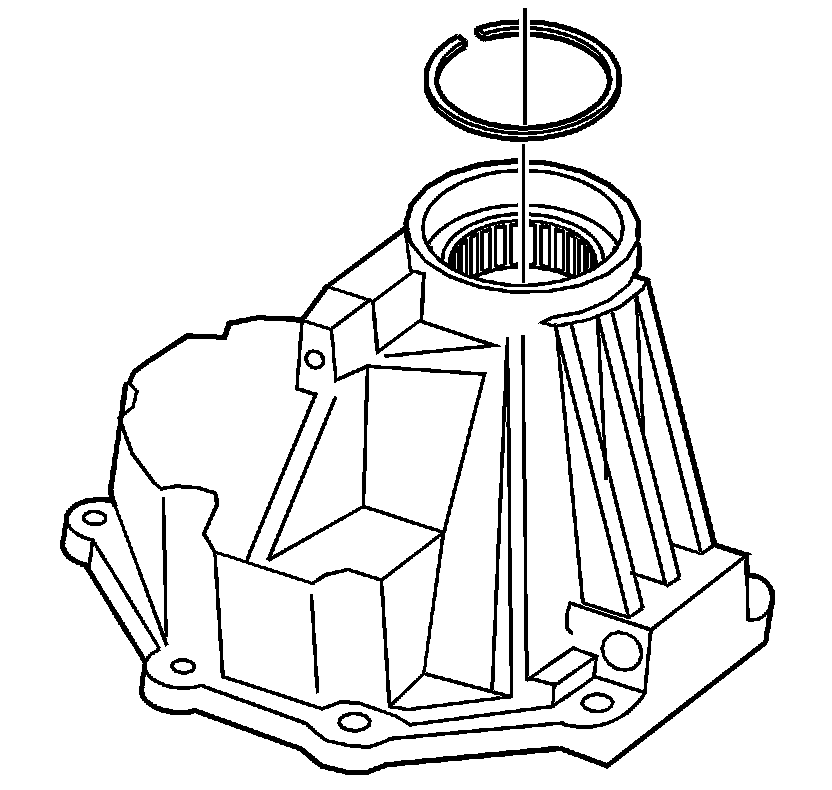

2. For the C model, remove the mainshaft rear bearing retainer ring.

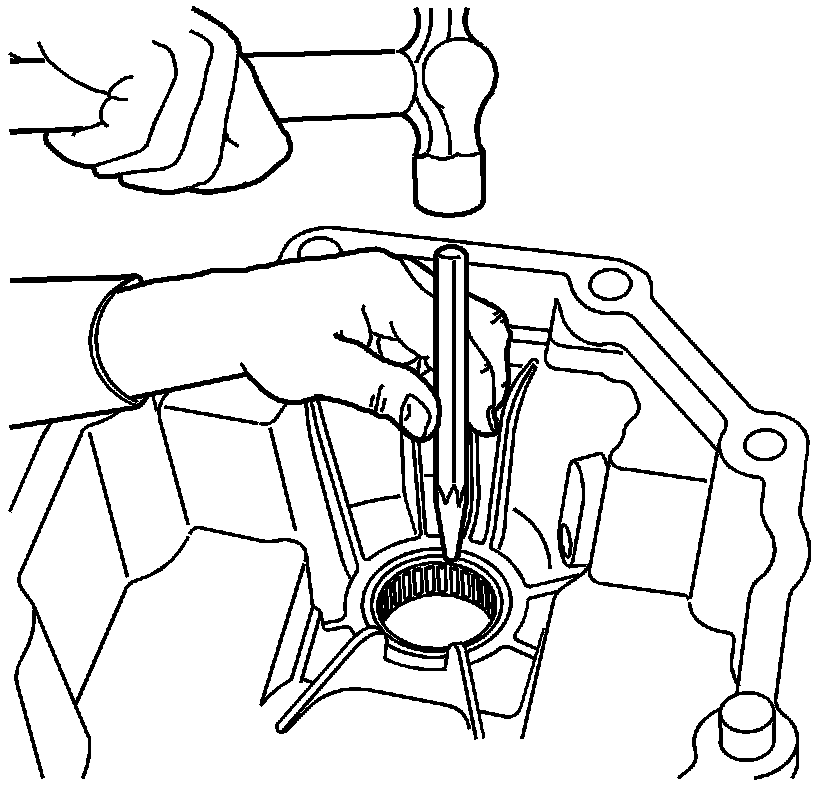

3. For the C model, using a hammer and a suitable punch, remove the rear bearing. Do not reuse the bearing after removal.
