Crossmember Replacement - Front Engine (2WD)

Crossmember Replacement - Front Engine (2WD)

Removal Procedure




1. Raise the vehicle. Refer to Vehicle Lifting.

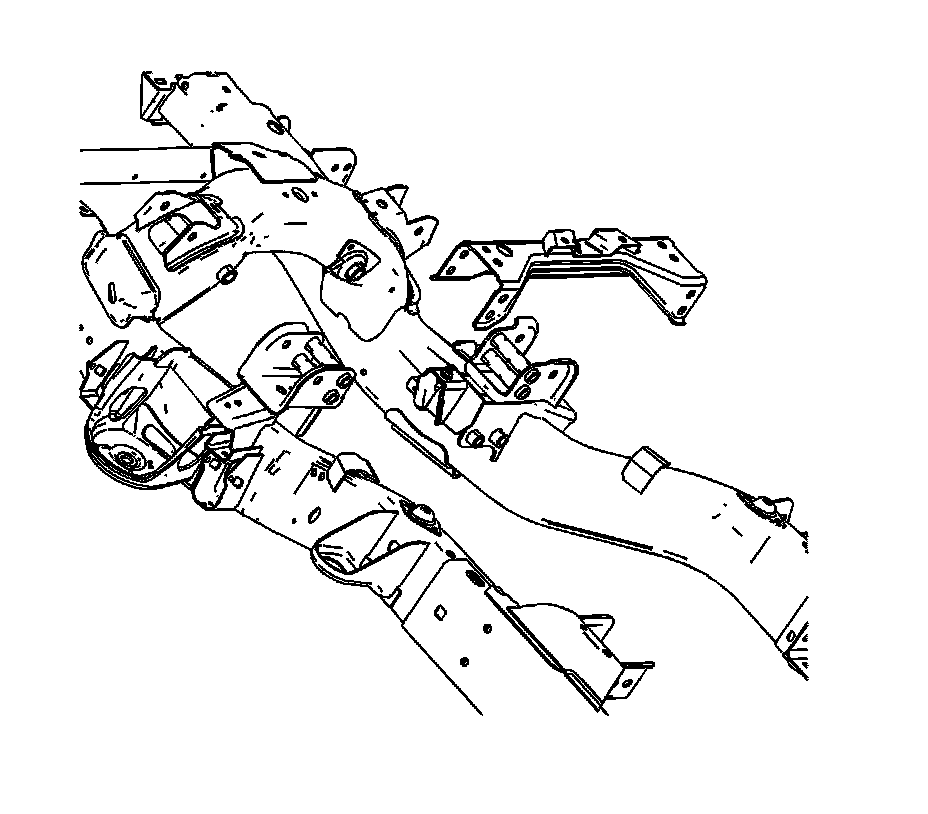

2. Remove the engine crossmember bolts.




3. Remove the engine crossmember.

Installation Procedure




1. Install the engine crossmember.





Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine crossmember bolts.

Tighten the engine crossmember bolts to 120 N.m (88 lb ft).

3. Lower the vehicle.
