14. Valve Rocker Arm Cover Removal - Left

Valve Rocker Arm Cover Removal - Left





1. Important: Do not remove the ignition coils and bracket from the valve rocker arm cover unless required.

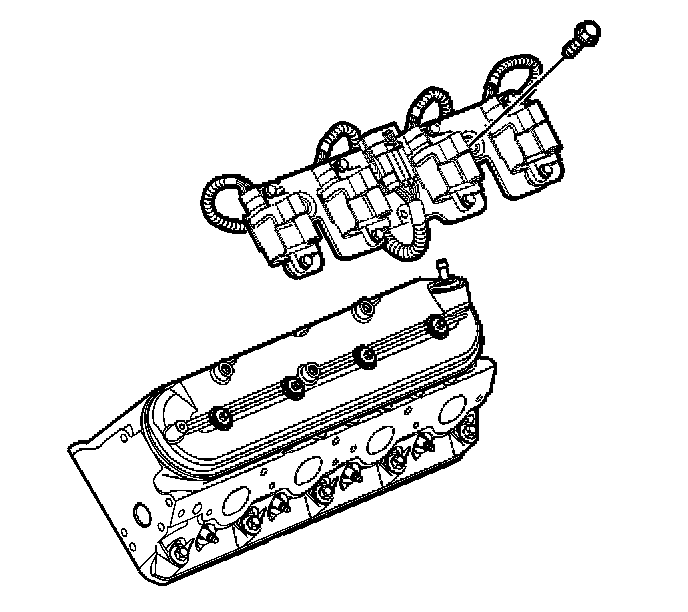

Remove the ignition coil bracket bolts from the rocker arm cover, if required.
2. Remove the ignition coil and bracket assembly from the cover.

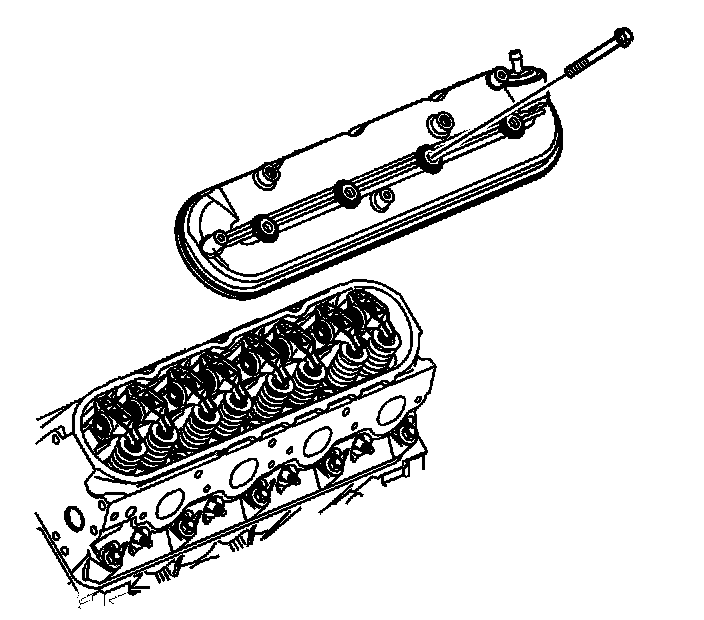

3. Remove the valve rocker arm cover bolts.
4. Remove the valve rocker arm cover.

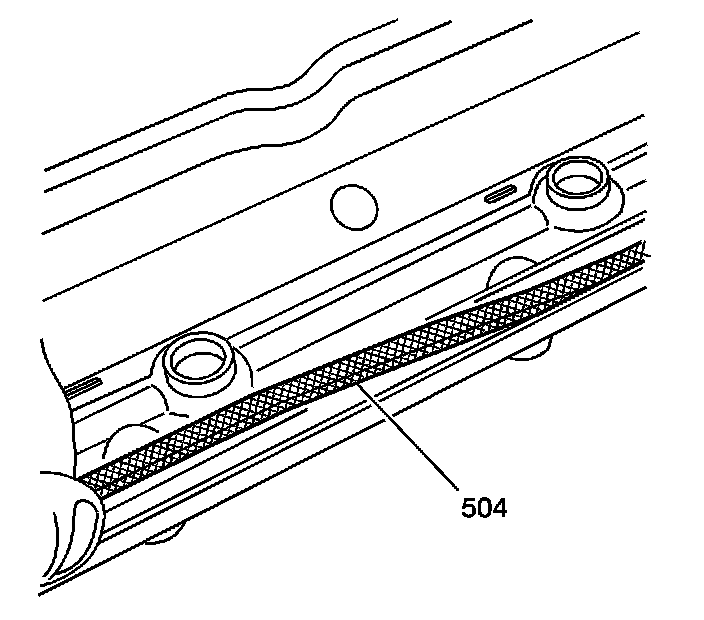

5. Remove the gasket (504) from the left cover.
6. Discard the gasket. The bolt grommets may be used again if they are not damaged.
