Blower Motor Replacement - Delphi

Blower Motor Replacement (Delphi)

Removal Procedure





1. If equipped, remove the sound insulator panel.
2. Remove the blower motor insulating cover screws.
3. Disconnect the electrical connector from the blower motor.
4. Remove the blower motor insulating cover.

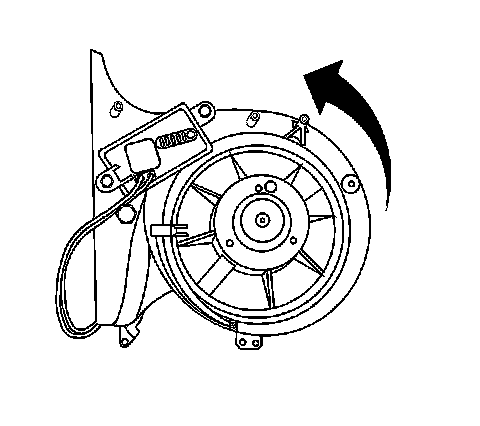

5. Pull the retaining tab down while turning the blower motor counterclockwise in order to disengage the blower motor from the heater/ventilation module.





6. Remove the blower motor.

Installation Procedure





1. Install the blower motor.

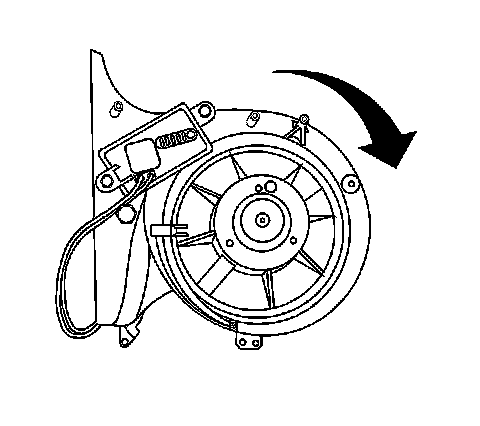

2. Install the blower motor to the heater/ventilation module. Turn the blower assembly clockwise until the retaining tab locks into place.
3. Install the blower motor insulating cover.





4. Connect the electrical connector to the blower motor.
5. Install the blower motor insulating cover screws.
Tighten the screws to 1.6 N.m (14 lb in).

Notice: Refer to Fastener Notice in Service Precautions.

6. If equipped, install the sound insulator panel.
