120 Volt Receptacle Replacement

120 VOLT RECEPTACLE REPLACEMENT

REMOVAL PROCEDURE

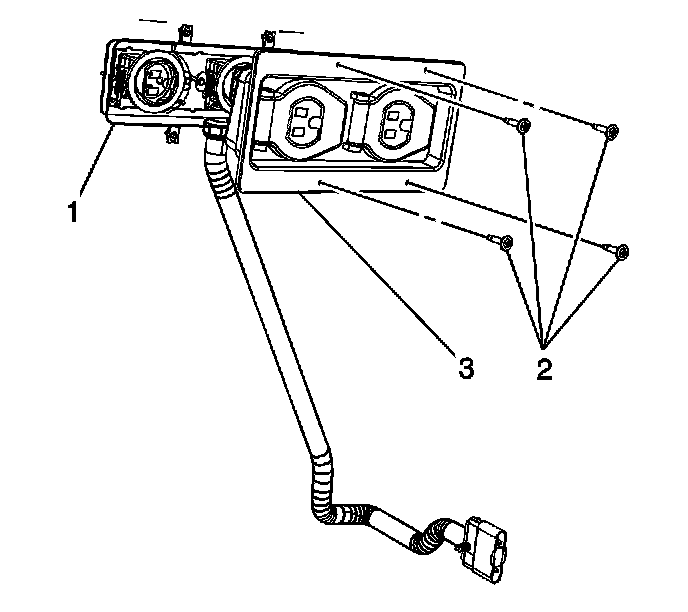

1. Remove the receptacle outlet screws (2).
2. Remove the receptacle outlet (3) from the receptacle box (1).
3. Disconnect the receptacle electrical connections.

INSTALLATION PROCEDURE




1. Connect the receptacle electrical connections.
2. Install the receptacle outlet (3) to the receptacle box (1).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the receptacle outlet screws (2).

Tighten the screws to 2 N.m (18 lb in).
