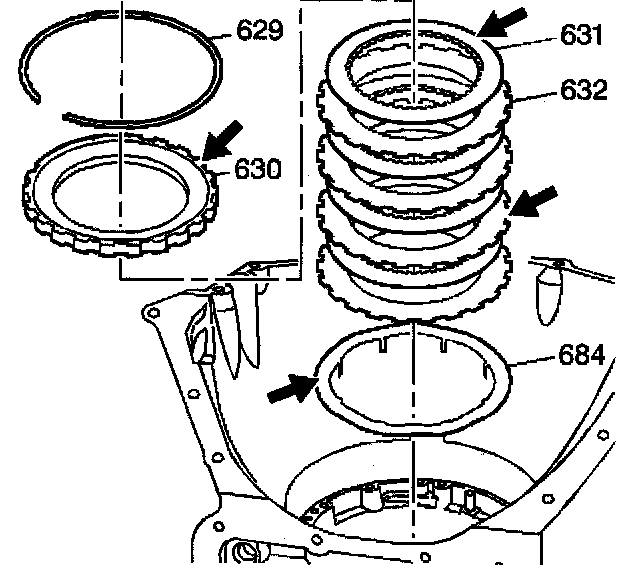

24. Intermediate Clutch Assembly Removal

1. Remove the intermediate clutch retainer ring (629).
2. Remove the intermediate clutch backing plate (630) and the intermediate clutch plates (631, 632) (4 each).
3. Remove the intermediate clutch wave plate (684).
4. Inspect the intermediate clutch plates (631, 632, 684) for the following conditions:
^ Wear
^ Pitting
^ Flaking
^ Cracks
5. Inspect the intermediate clutch backing plate (630) for the following conditions:
^ Burrs
^ Dirt
