ZF S6-650

Transmission Mount Replacement - Rear

Removal Procedure

Notice: Broken or deteriorated mounts can cause misalignment and destruction of certain drive train components. When a single mount breaks, the remaining mounts are subjected to abnormally high stresses.





1. Raise and suitably support the vehicle. Refer to Vehicle.

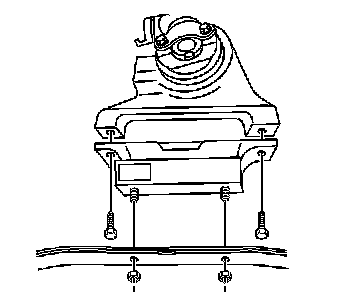

2. Remove the transmission mount to crossmember nuts.
3. Remove the transmission mount bolts to the transmission.
4. Raise the transmission using a suitable transmission jack, just enough in order to permit the removal of the mount.
5. Remove the transmission mount.

Installation Procedure





1. Install the rear transmission mount.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the transmission mount bolts.
^ Tighten the transmission mount bolts to 50 Nm (37 ft. lbs.).
3. Lower the transmission.
4. Install the transmission mount to crossmember nuts.
^ Tighten the transmission mount to crossmember nuts to 54 Nm (40 ft. lbs.).
5. Lower the vehicle.
