Ignition Coil
Ignition Coil
Ignition Coil 1:

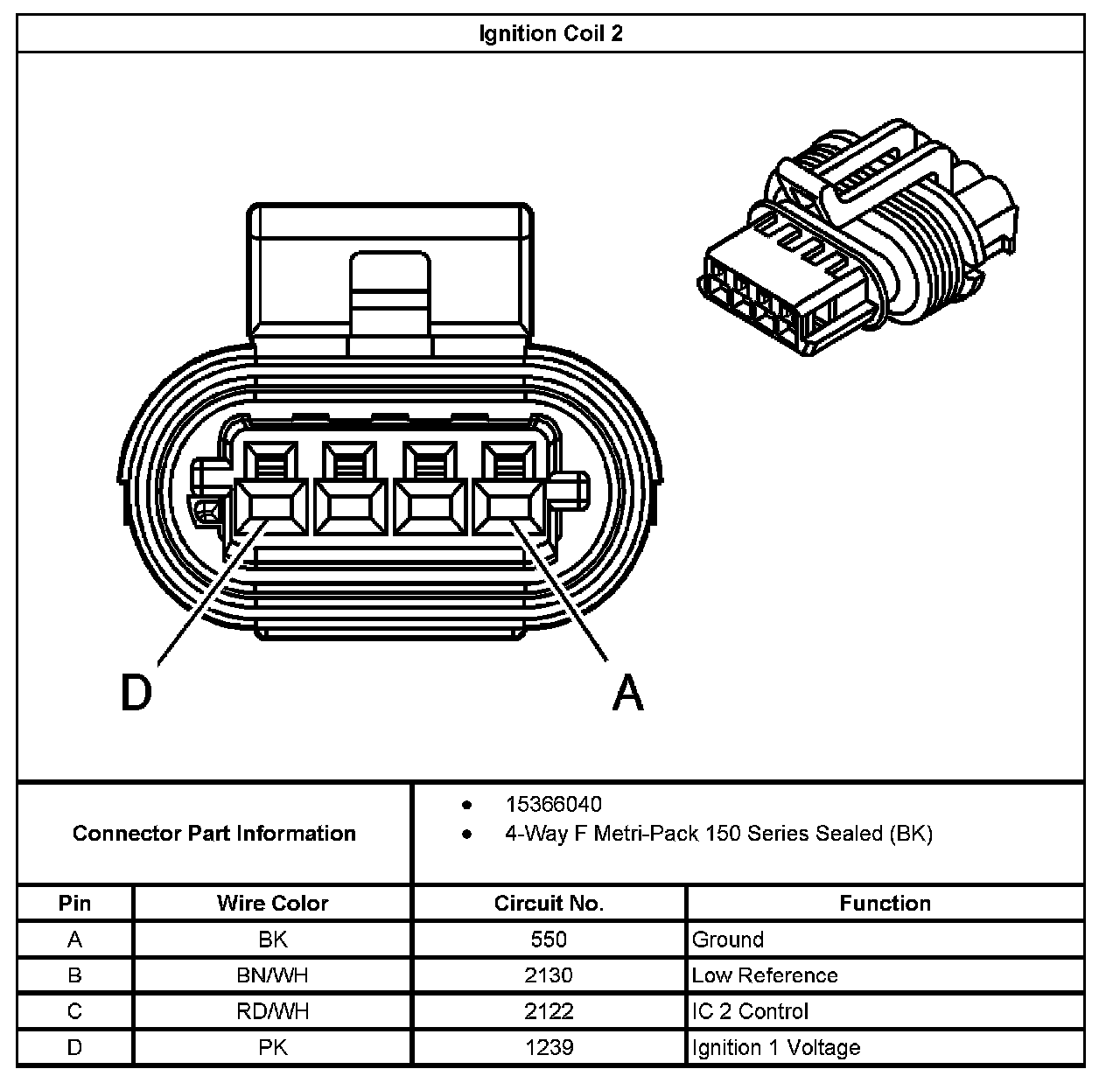

Ignition Coil 2:
Ignition Coil 3:

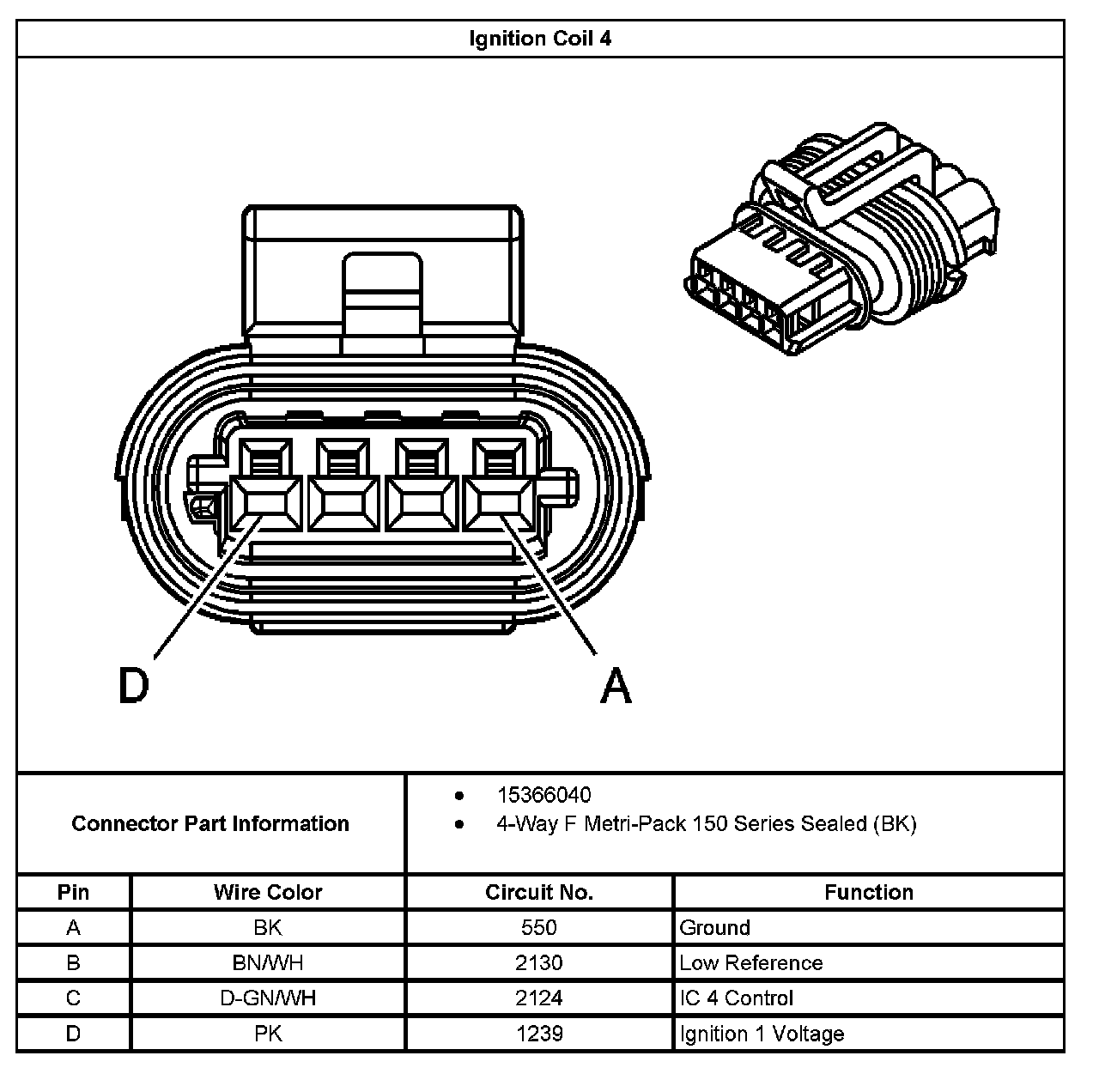

Ignition Coil 4:
Ignition Coil 5:
Ignition Coil 6:
Ignition Coil 7:
Ignition Coil 8:
