7. Oil Level Indicator and Tube Removal

Oil Level Indicator and Tube Removal

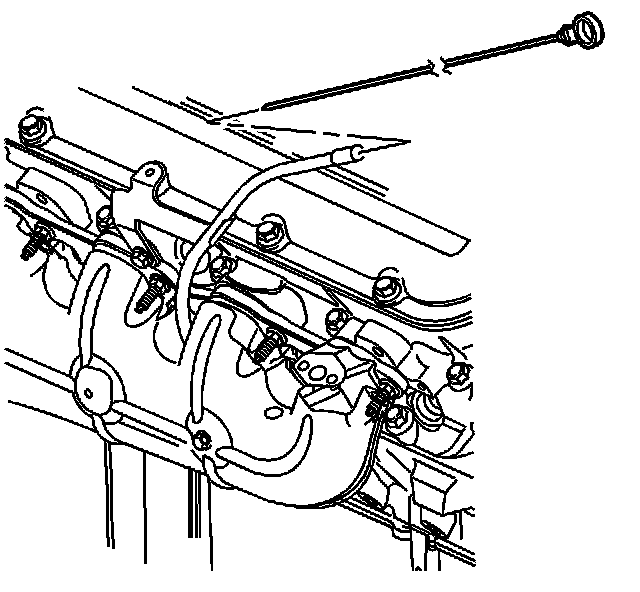

1. Remove the oil level indicator from the oil level indicator tube.

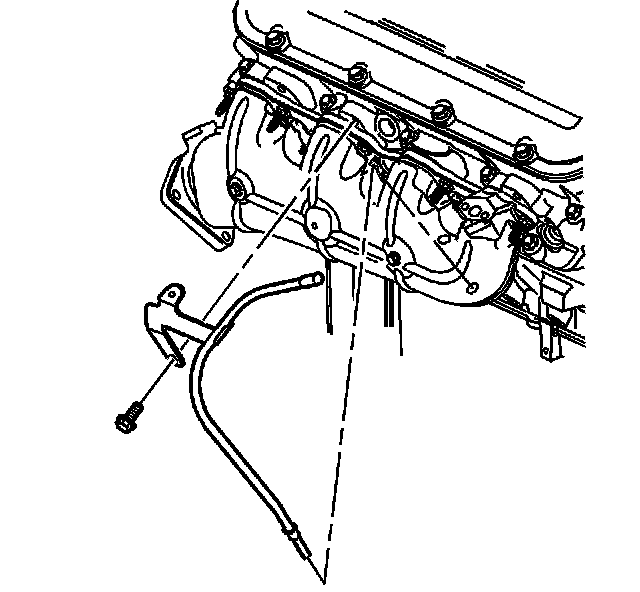

2. Remove the oil level indicator tube bolt.
3. Remove the oil level indicator tube from the oil pan.
4. Remove the O-ring seal from the oil level indicator tube.
