4L80-E/4L85-E Automatic Transmission

Automatic Transmission Controls Diagrams

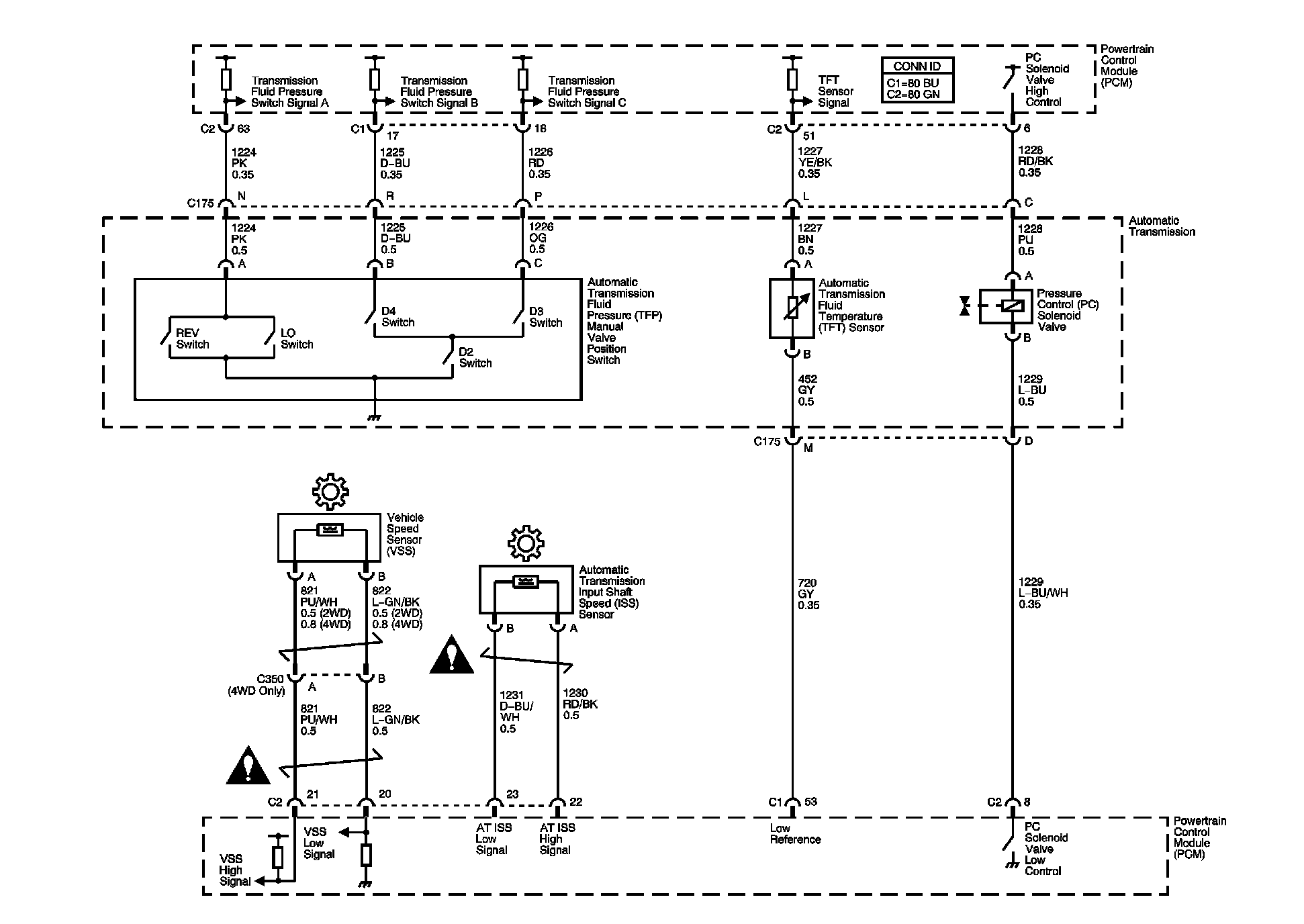

Automatic Transmission Controls Diagrams 1:

Automatic Transmission Controls Diagrams 2:

Automatic Transmission Controls Diagrams 3:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets, shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
