Input Carrier Assembly 1

Input Carrier Assembly

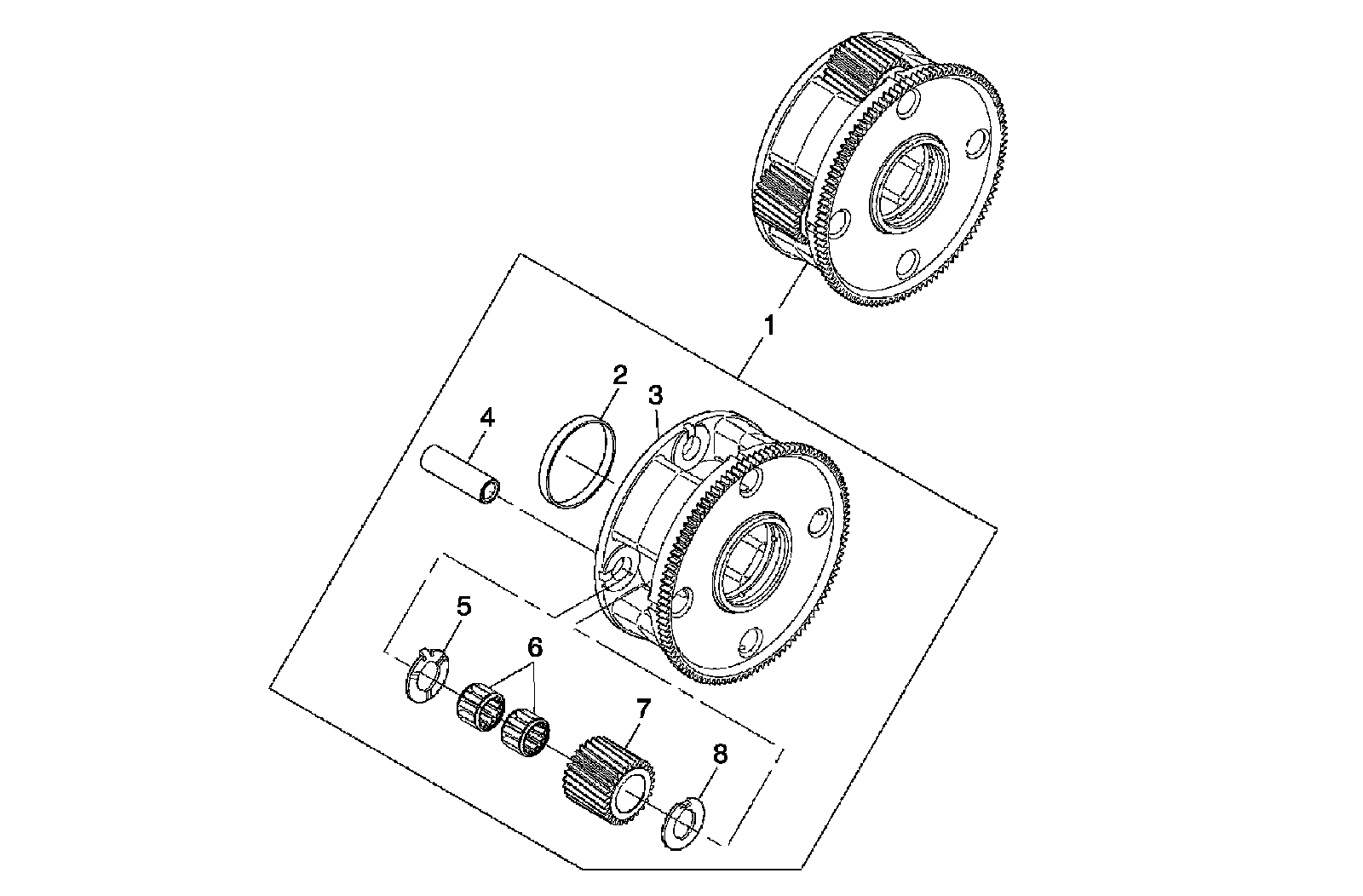

Input Carrier Assembly:

1 - Input Carrier Assembly
2 - Bushing, 53.0 mm (2.09 inch) ID
3 - Input Carrier
4 - Input Carrier Spindle (4)
5 - Input Carrier Thrust Washer (4)
6 - Input Carrier Roller Bearing Assembly (8)
7 - Input Carrier Pinion Gear (4)
8 - Input Carrier Thrust Washer (4)
