Intermediate Carrier Assembly Inspection

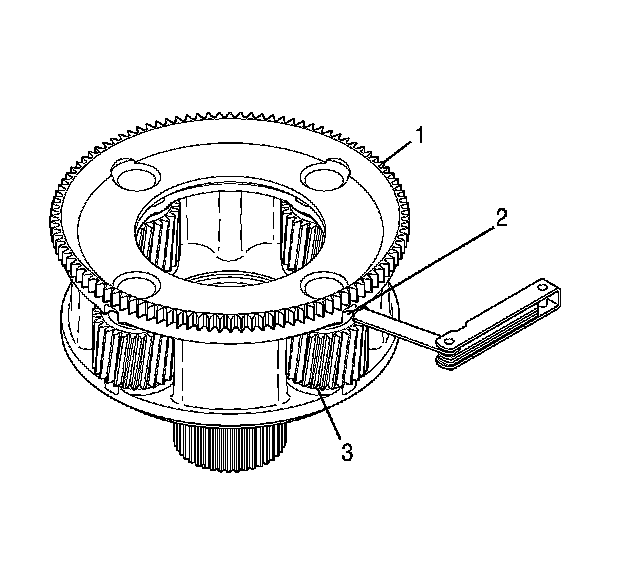

1. Check the end play between the intermediate carrier assembly (1) and the thrust washer (2) at each pinion gear (3).
2. If the end play exceeds specifications replace the intermediate carrier assembly.
The maximum end play is 1.060 mm (0.0417 inch).

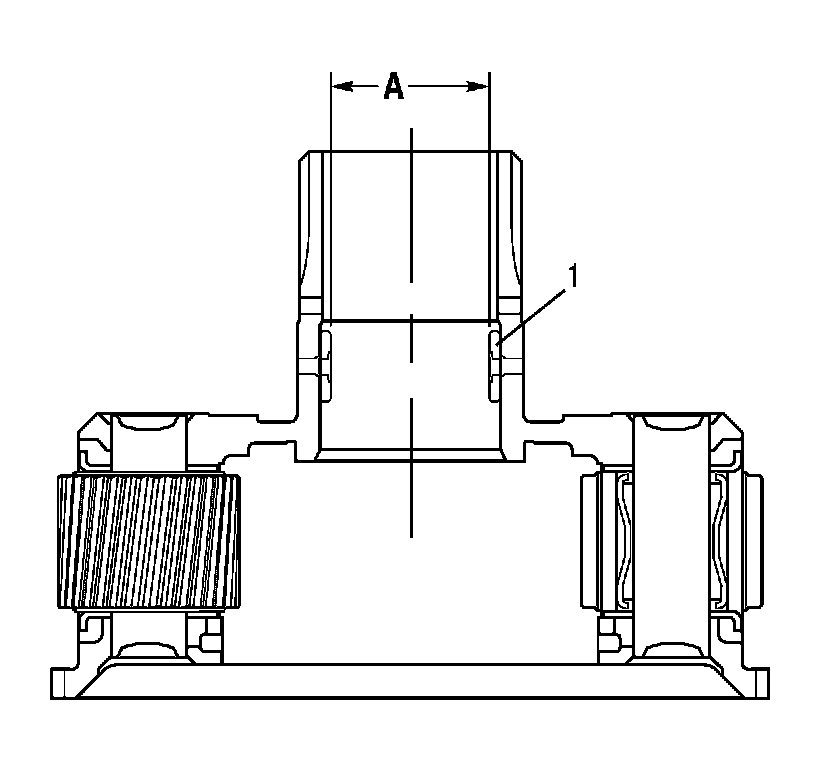

3. Inspect the bushing (1) for wear and damage.
4. Measure the inside diameter (ID) of the bushing at dimension A.
5. If the bushing ID exceeds specifications, replace the bushing.
The bushing maximum ID is 36.575 mm (1.4400 inch)
