Front Door Window Glass: Service and Repair

Window Replacement - Front Door

Removal Procedure




1. Raise the window partially up.
2. Remove the trim panel upper extension.
3. Remove the manual door lock lever.
4. Remove the manual window handle, if equipped.
5. Remove the door switch panel, if equipped.
6. Remove the door trim panel.
7. Remove the water deflector.
8. Remove the window run channel front bolt attachment.

Important: Do not remove the bolts.

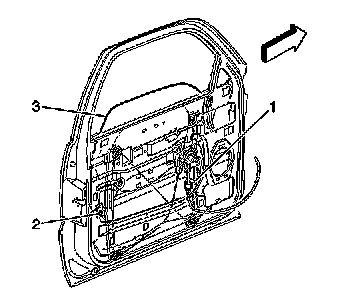

9. Loosen the 2 retaining bolts (2) from the window assembly.
10. Remove the window (3) from the door by sliding the window out through the top.

Installation Procedure




1. Install the window (3) to the door.

Notice: Refer to Fastener Notice in Service Precautions.

2. Tighten the 2 retaining bolts (2) to the window assembly.

Tighten the bolts to 12 N.m (9 lb ft).

3. Install the window run channel bolt.

Tighten the bolts to 9 N.m (80 lb in).

4. Install the water deflector.
5. Install the door trim panel.
6. Install the door switch panel.
7. Install the manual window handle, if equipped.
8. Install the manual door lock lever.
9. Install the trim panel upper extension.
10. Inspect the operation of the window.
