17. Cylinder Head Removal - Right

Cylinder Head Removal - Right

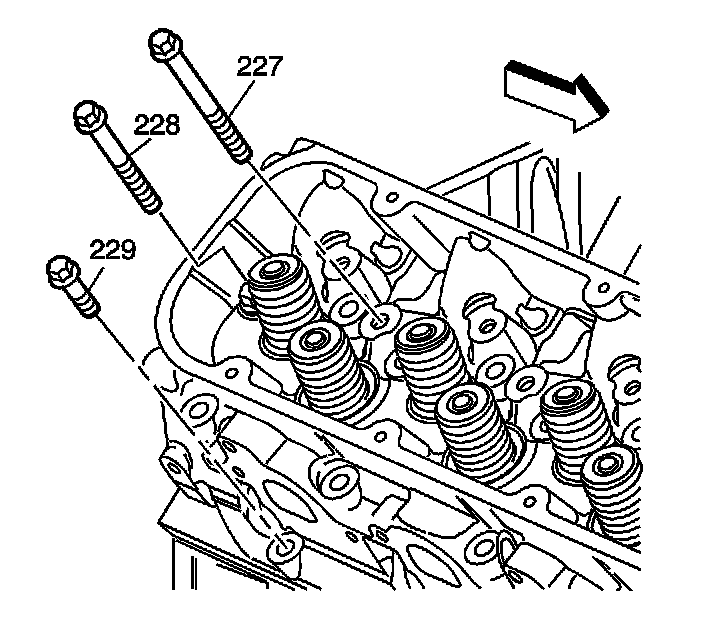

1. Remove and discard the cylinder head bolts (227, 228, 229).





2. Notice: After removal, place the cylinder head on two wood blocks to prevent damage to the sealing surfaces.

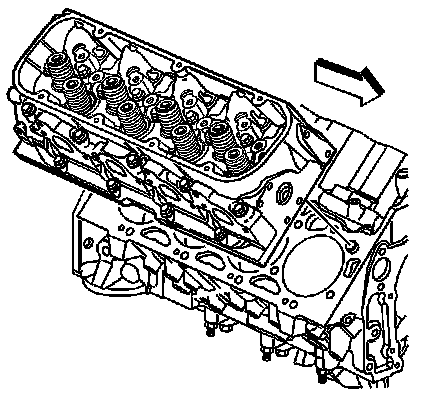

Remove the cylinder head.

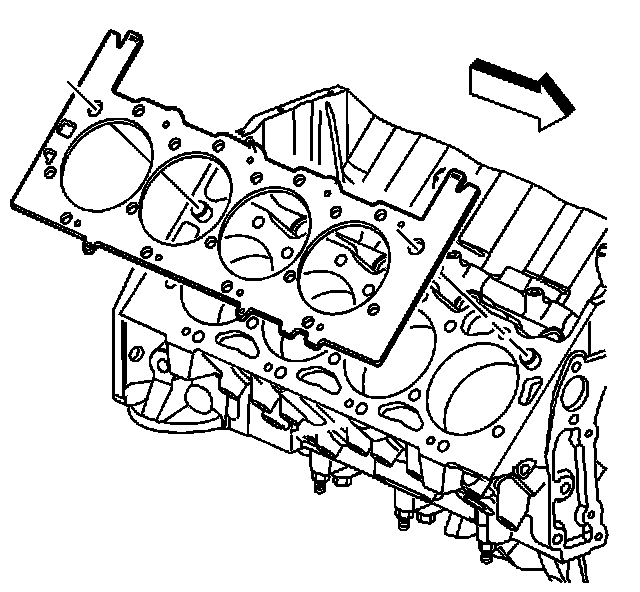

3. Remove the cylinder head gasket.
4. Discard the cylinder head gasket.
