20. Oil Pan Removal
Oil Pan Removal

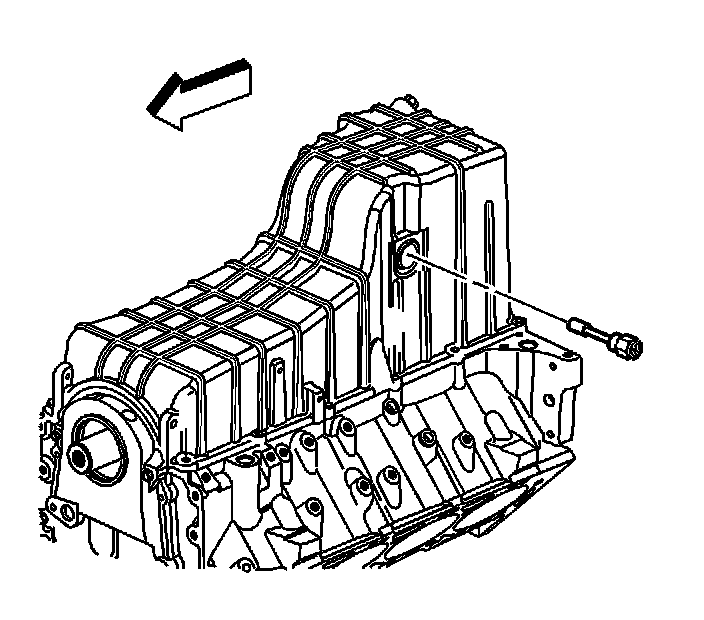

1. Remove the oil level sensor from the oil pan.
2. Remove the oil pan bolts.
3. Important: The oil pan gasket is reusable if not cut or damaged.
Remove the oil pan (400) and the oil pan gasket (404).
Oil Pan Removal
1. Remove the oil level sensor from the oil pan.
2. Remove the oil pan bolts.
3. Important: The oil pan gasket is reusable if not cut or damaged.
Remove the oil pan (400) and the oil pan gasket (404).
