80. Water Crossover Installation

Water Crossover Installation

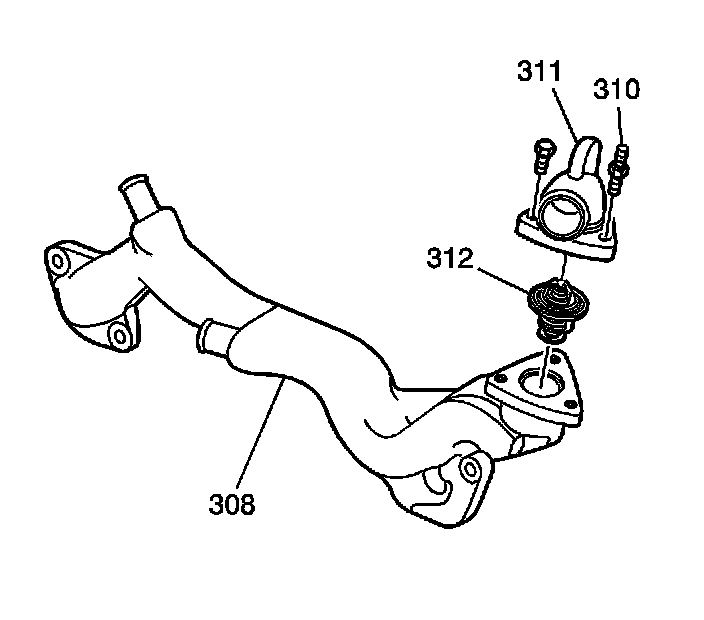

1. Install the thermostat (312) with the seal into the water crossover (308).
2. Install the thermostat housing (311).

3. Notice: Refer to Fastener Notice in Service Precautions.

Install the thermostat housing bolts (310).
Tighten the bolts to 30 Nm (22 lb ft).

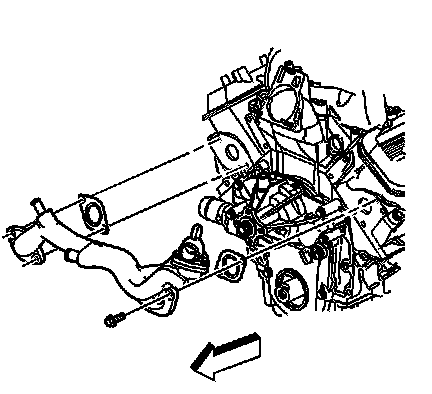

4. Install the gaskets and the water crossover.
5. Install the bolts.
Tighten the water crossover bolts to 50 Nm (37 lb ft).

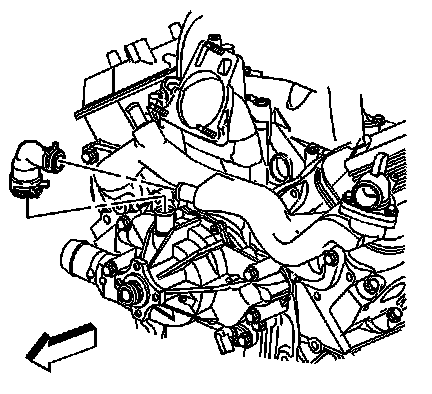

6. Important: Properly position the bypass hose clamps to avoid water pump pulley interference.

Install the thermostat bypass hose and clamps.

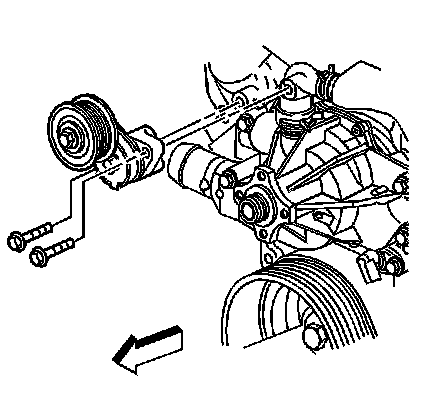

7. Install the drive belt tensioner.
8. Install the drive belt tensioner bolts.
Tighten the drive belt tensioner bolts to 50 Nm (37 lb ft).
