Rack and Pinion Gear Rack Bearing Preload Adjustment - Off Vehicle (Rack and Pinion)

Rack and Pinion Gear Rack Bearing Preload Adjustment - Off Vehicle (Rack and Pinion)

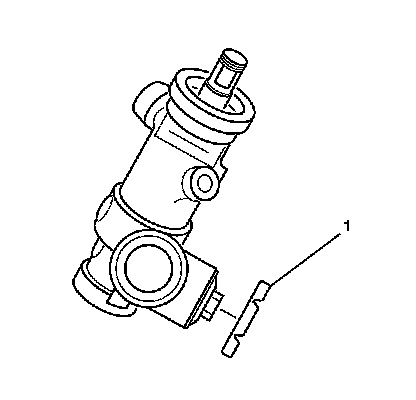

1. Loosen the adjuster plug lock nut (1).
2. Turn the adjuster plug clockwise until the adjuster plug bottoms in the gear assembly.
3. Turn the adjuster plug back 50 degrees to 70 degrees (approximately one flat).

4. Install the adjuster plug lock nut (1) to the adjuster plug.
^ Hold the adjuster plug stationary while tightening the adjuster plug lock nut (1) to 68 Nm (50 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.
