No Correction For Slip In AWD Mode

No Correction for Slip in AWD Mode
Test Description

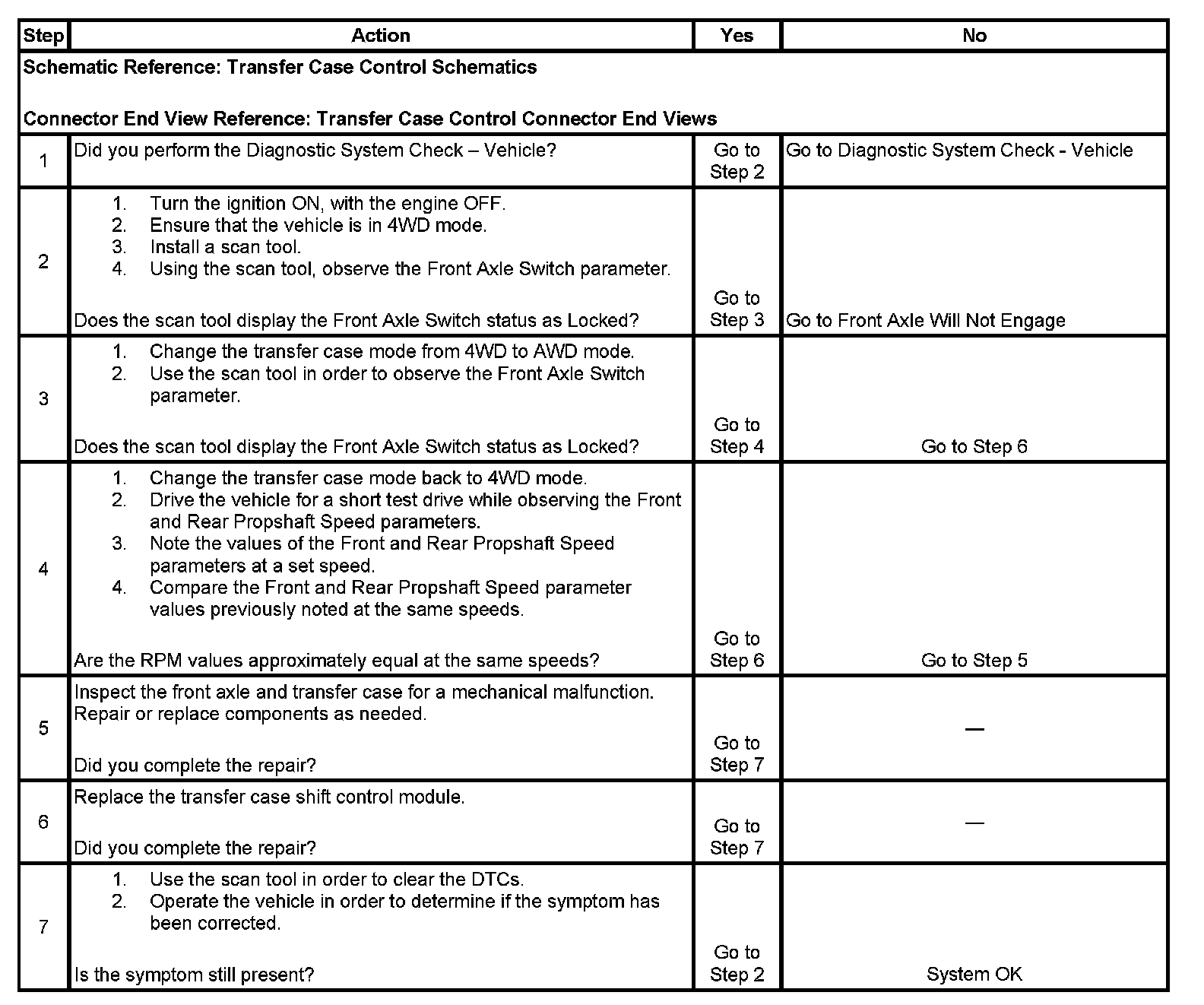

The numbers below refer to the step numbers on the diagnostic table.
2. This step helps determine whether the front axle switch is functioning properly.
3. This step helps determine whether the front axle switch is locking and unlocking.
4. This step tests transfer case clutch performance.
