Radiator Air Baffle and Deflector Replacement - Side

Radiator Air Baffle and Deflector Replacement - Side

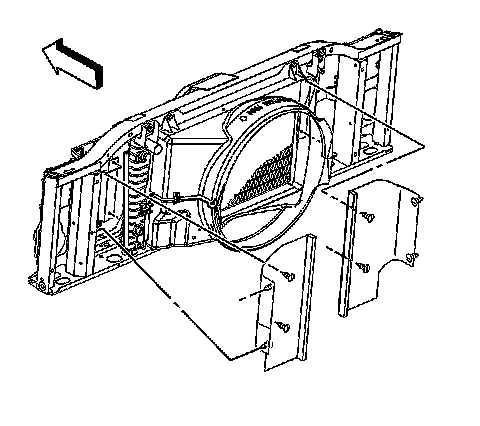

Removal Procedure





1. Remove the radiator.
2. Remove the radiator air baffle retainers.
3. Remove the radiator air baffles.

Installation Procedure





1. Install the radiator air baffles.
2. Install the radiator air baffle retainers.
3. Install the radiator.
