88. Oil Level Indicator and Tube Installation

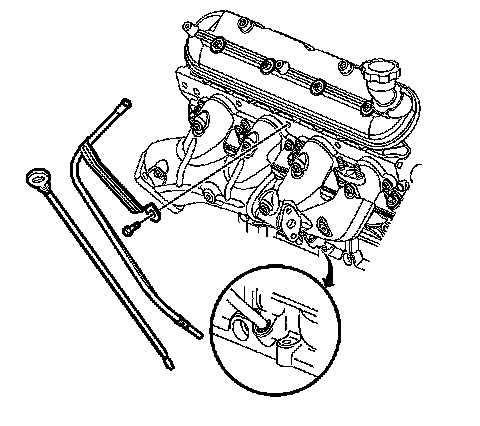

Oil Level Indicator and Tube Installation





1. Inspect the O-ring seal for cuts or damage. If the oil level indicator tube O-ring seal is not cut or damaged, it may be reused.
2. Lubricate the O-ring seal with clean engine oil.
3. Install the O-ring seal onto the oil level indicator tube.
4. Install the oil level indicator tube into the engine block and rotate into proper position.

5. Notice: Refer to Fastener Notice in Service Precautions.

Install the tube bolt.
^ Tighten the oil level indicator tube bolt to 25 Nm (18 lb ft).
6. Install the oil level indicator into the tube.
