Tire Rotation

Tire Rotation

^ Tools Required
- J 39544-K/T Torque Socket Set





In order to equalize wear, rotate the tires at the specified intervals. In addition to scheduled rotation, rotate the tire and wheel assembly whenever you notice uneven tire wear.

Radial tires tend to wear faster in the shoulder area, particularly in front positions, due to design. Radial tires in non-drive locations may develop an irregular wear pattern that can generate tire noise. This especially makes regular tire rotation necessary.
1. Raise and support the vehicle.
2. Remove the 4 center caps from the wheels.
3. Remove the wheels.

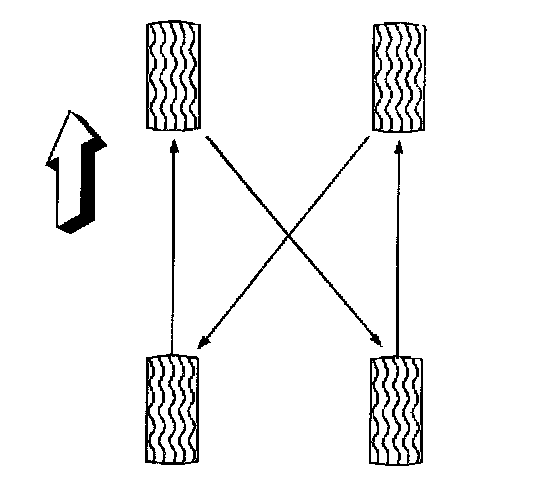

4. Rotate the 4 wheels and tires as shown.

Installation
1. Install the tires and wheels.
2. Install the 4 center caps.
3. Lower the vehicle.
4. Learn the tire pressure sensors.
