Discharge Air Temperature Sensor / Switch: Locations

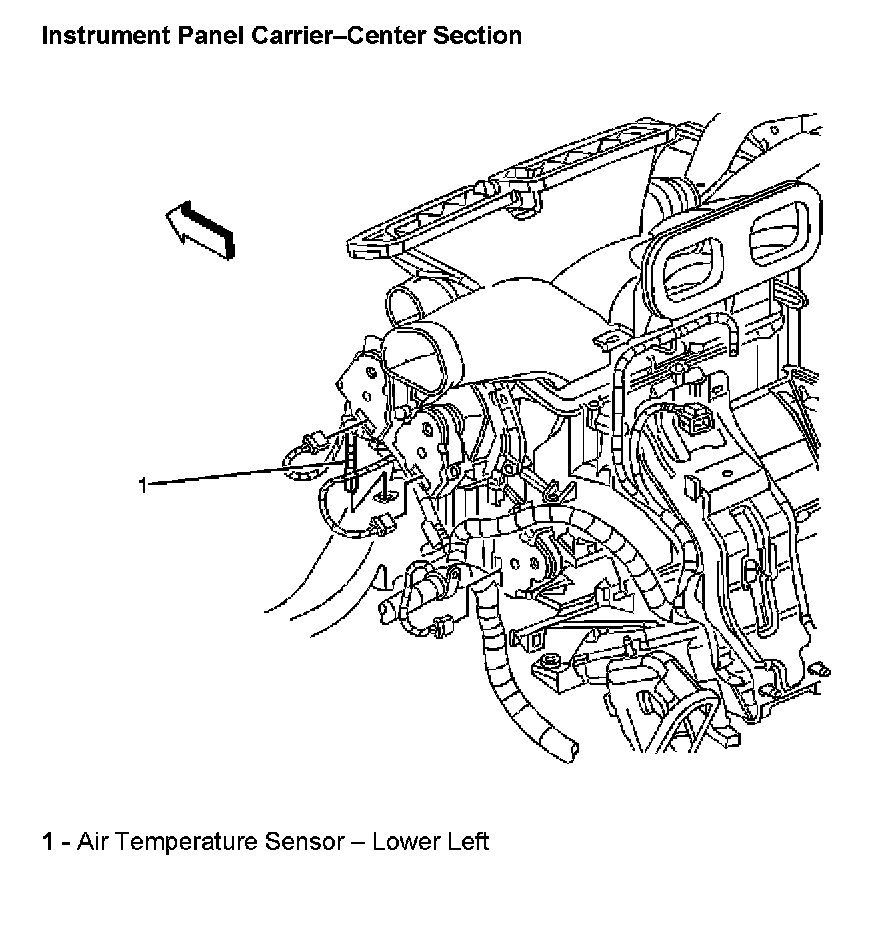

Instrument Panel Carrier - Center Section:

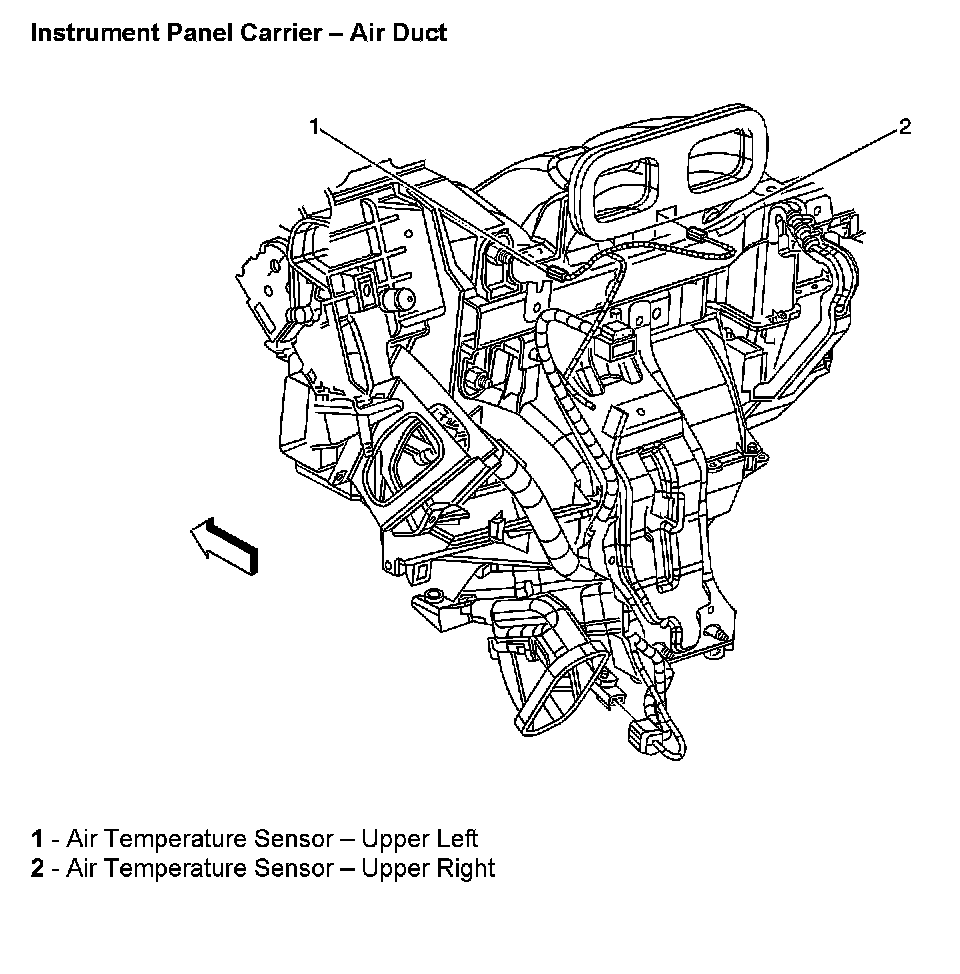

Instrument Panel Carrier - Air Duct:

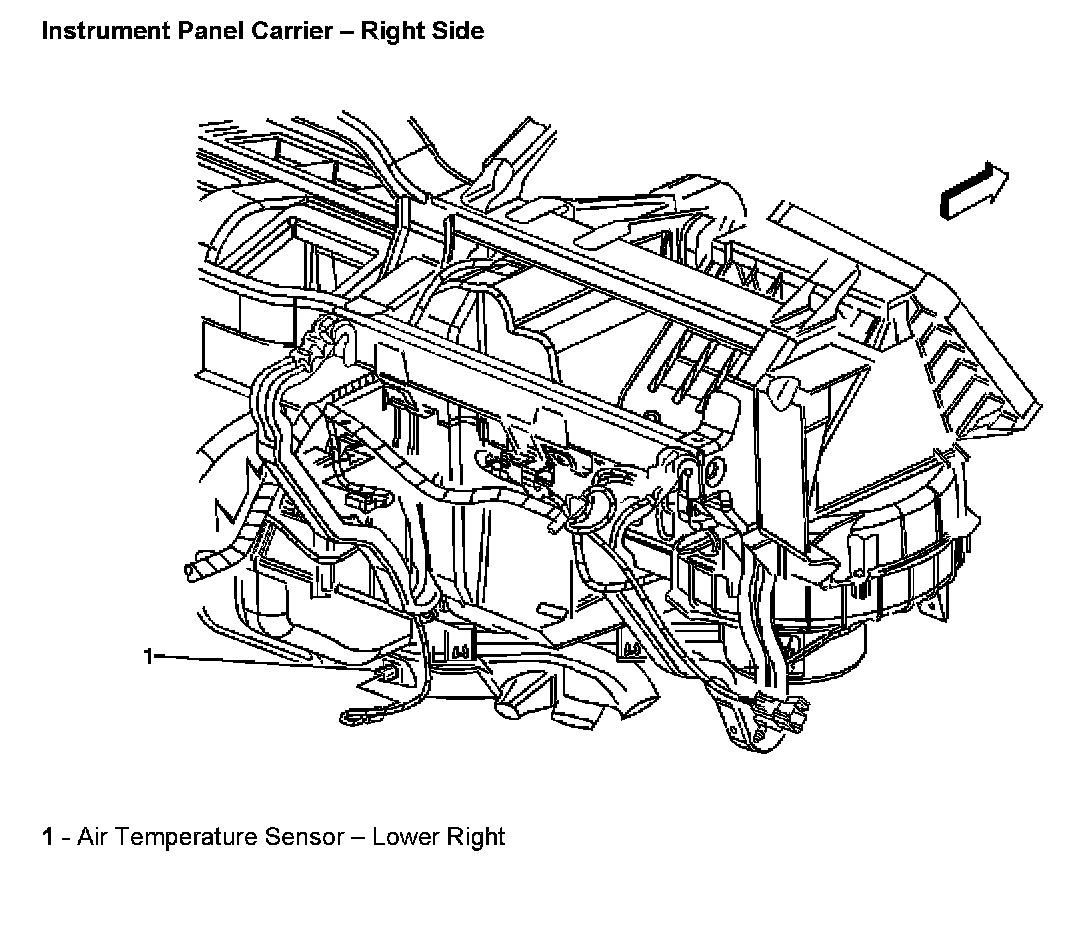

Instrument Panel Carrier - Right Side:
