Impact Sensor

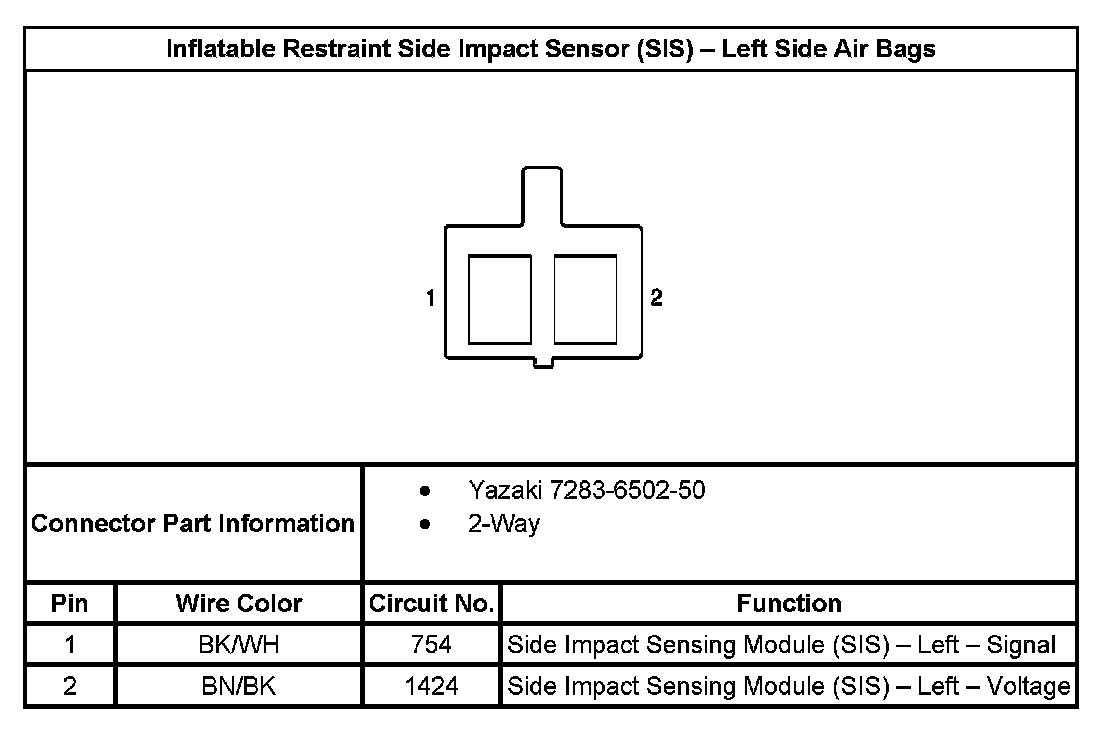

Inflatable Restraint Side Impact Sensor (SIS) - Left Side Air Bags:

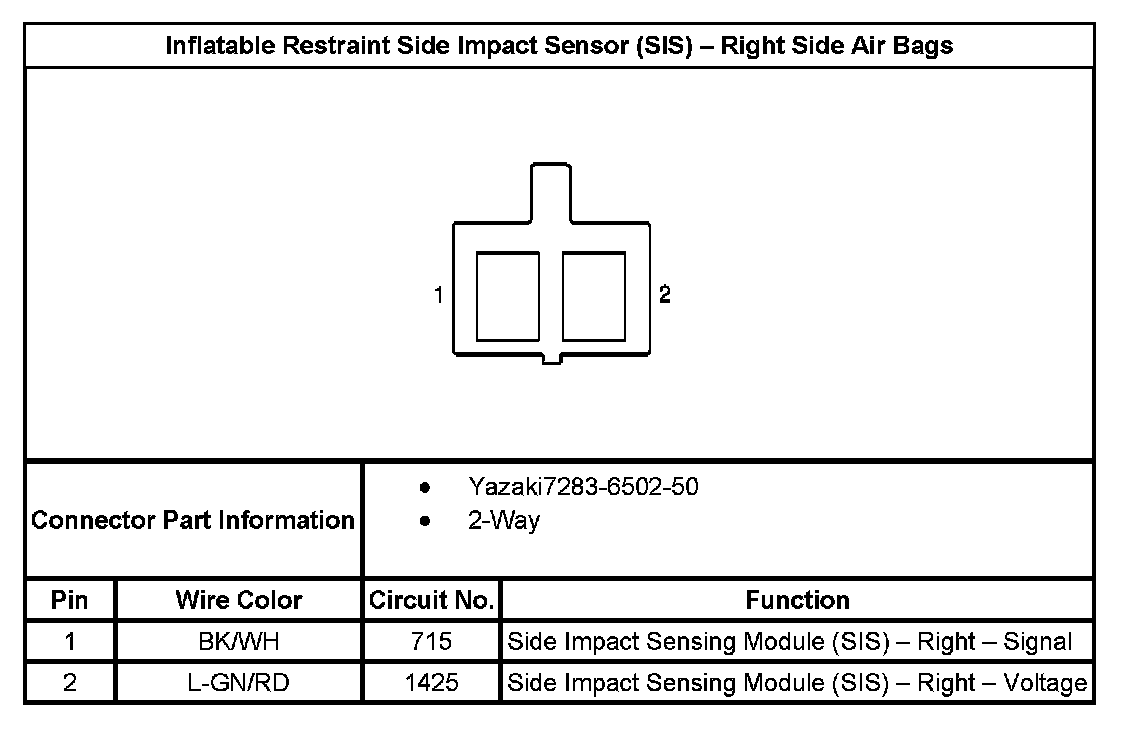

Inflatable Restraint Side Impact Sensor (SIS) - Right Side Air Bags:
