Center

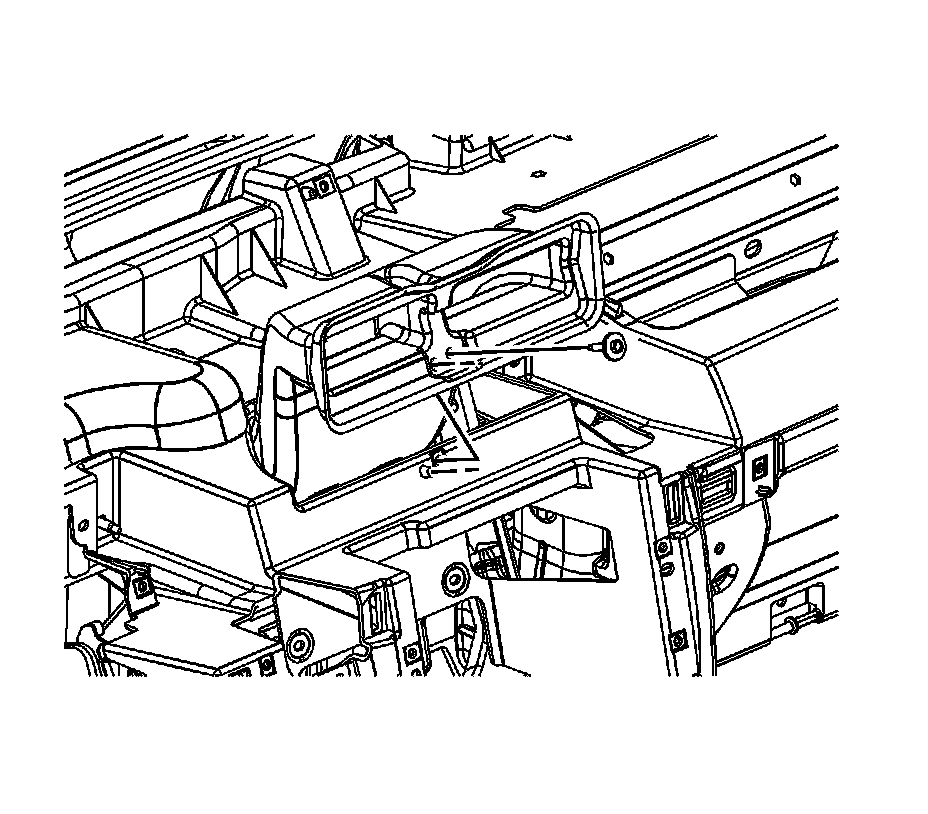

AIR OUTLET DUCT REPLACEMENT - CENTERREMOVAL PROCEDURE 1.
Remove the instrument panel (I/P) center trim panel.
2.
Remove the center air outlet duct screw and duct.
INSTALLATION PROCEDURE 1.
Install the center air outlet duct.
2.
Install the center air outlet screw.
Tighten the center air outlet duct screw to
2.5 N.m (22 lb in).
NOTE: Refer to Fastener Notice in Service Precautions.
3.
Install the I/P center trim panel.
