Fuel Injector

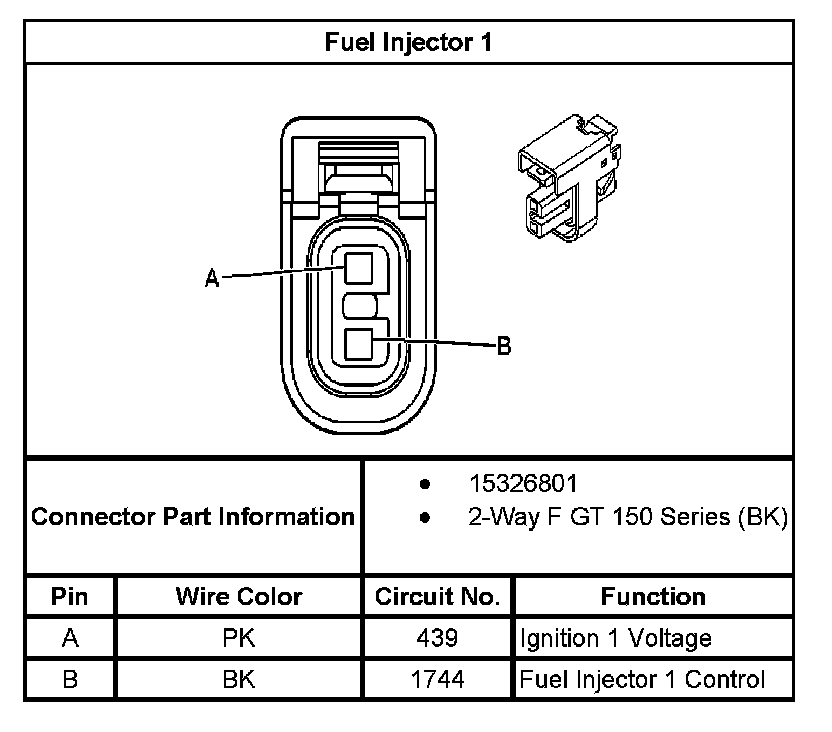

Fuel Injector 1:



Fuel Injector 2:



Fuel Injector 3:

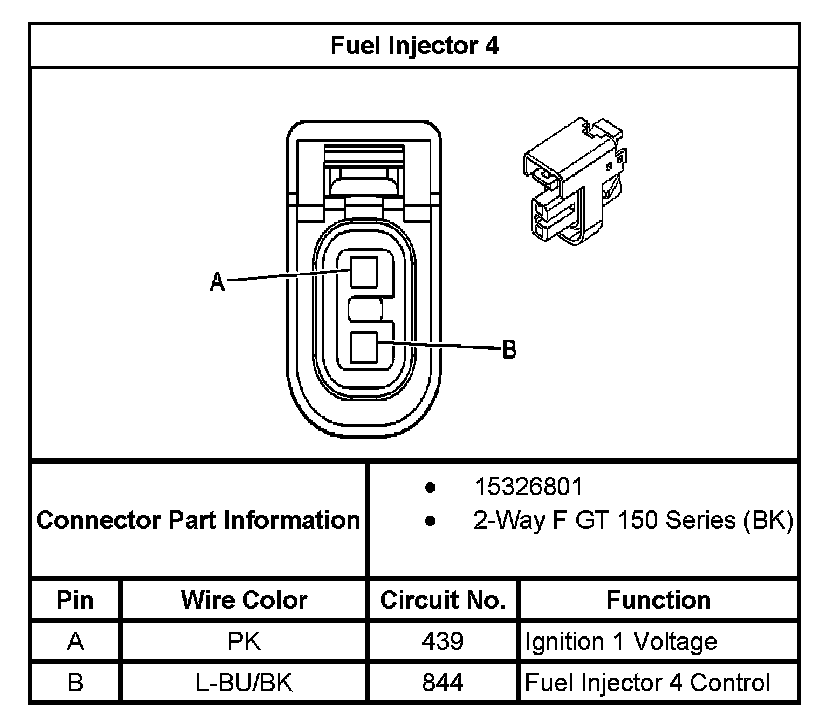

Fuel Injector 4:

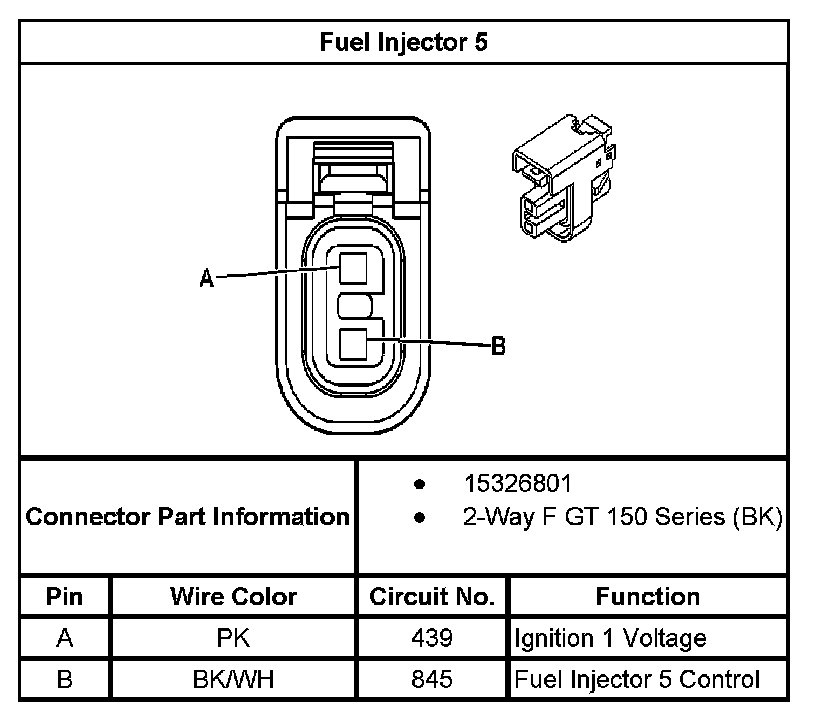

Fuel Injector 5:
