Chevrolet
>>
2006
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Convertible Top
>>
Convertible Top Control Module
Convertible Top Control Module

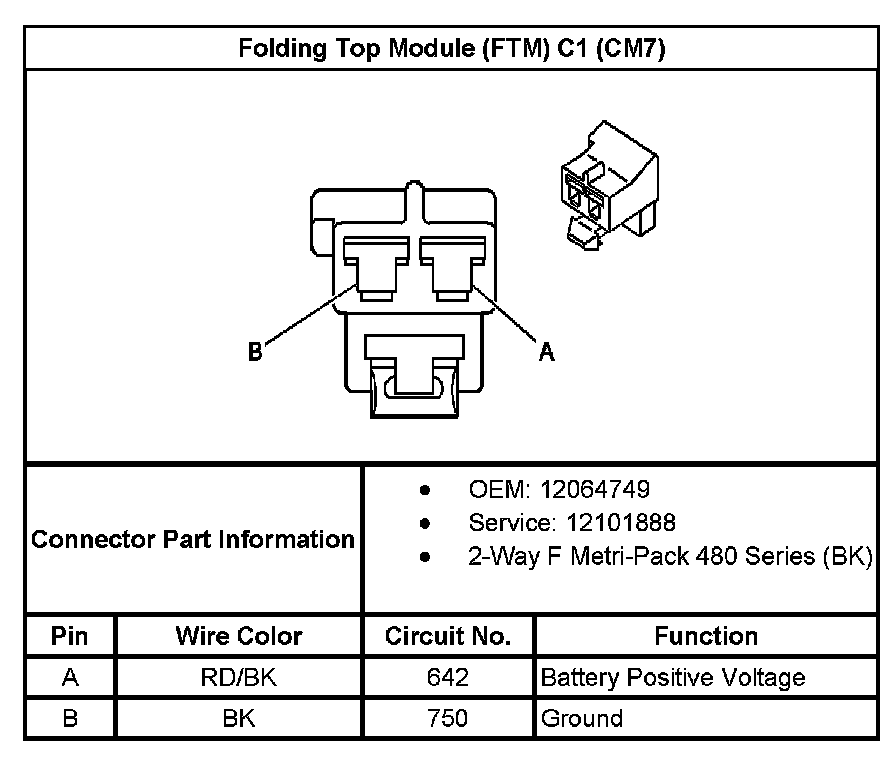

Folding Top Module (FTM) C1 (With RPO Code CM7):

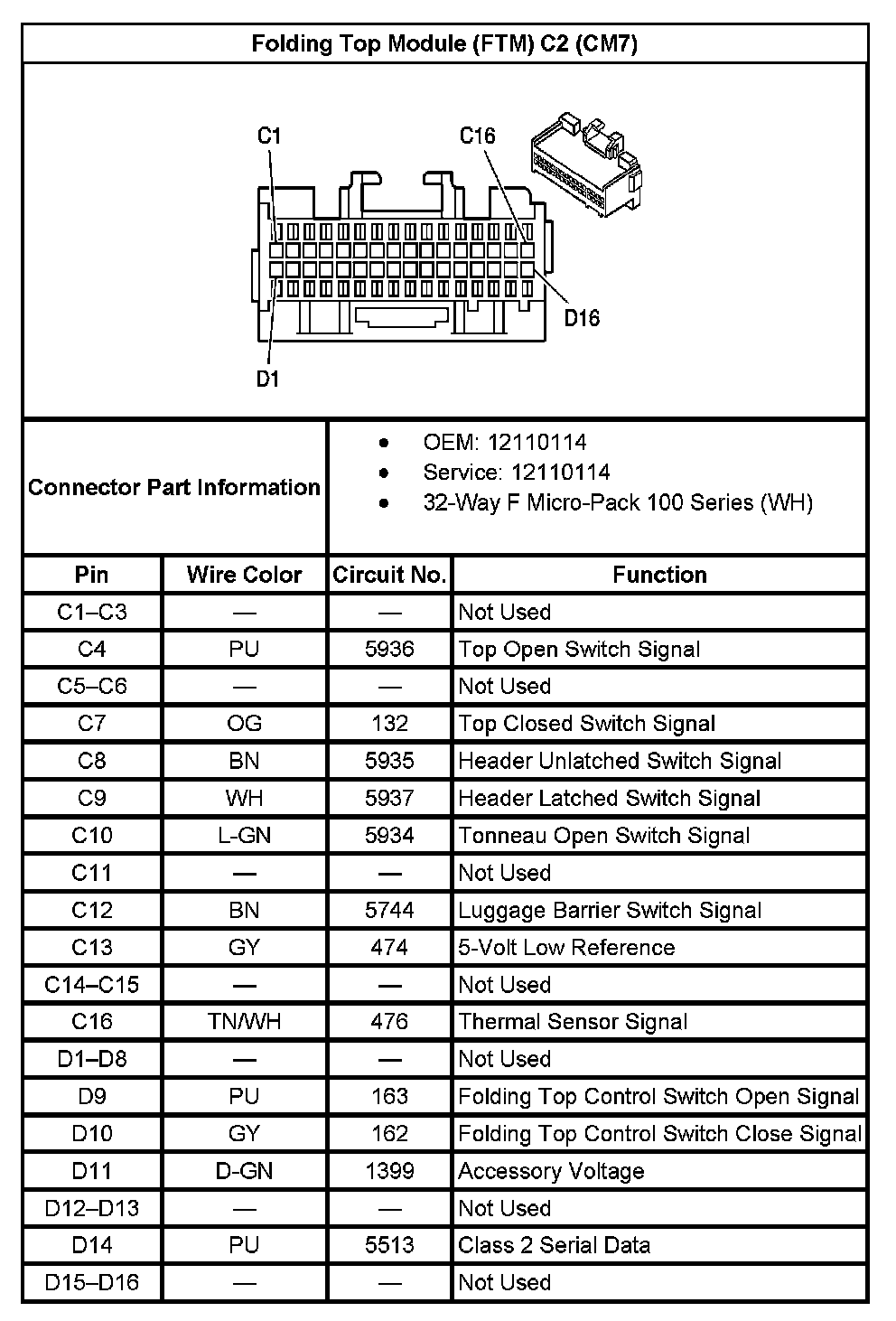

Folding Top Module (FTM) C2 (With RPO Code CM7):

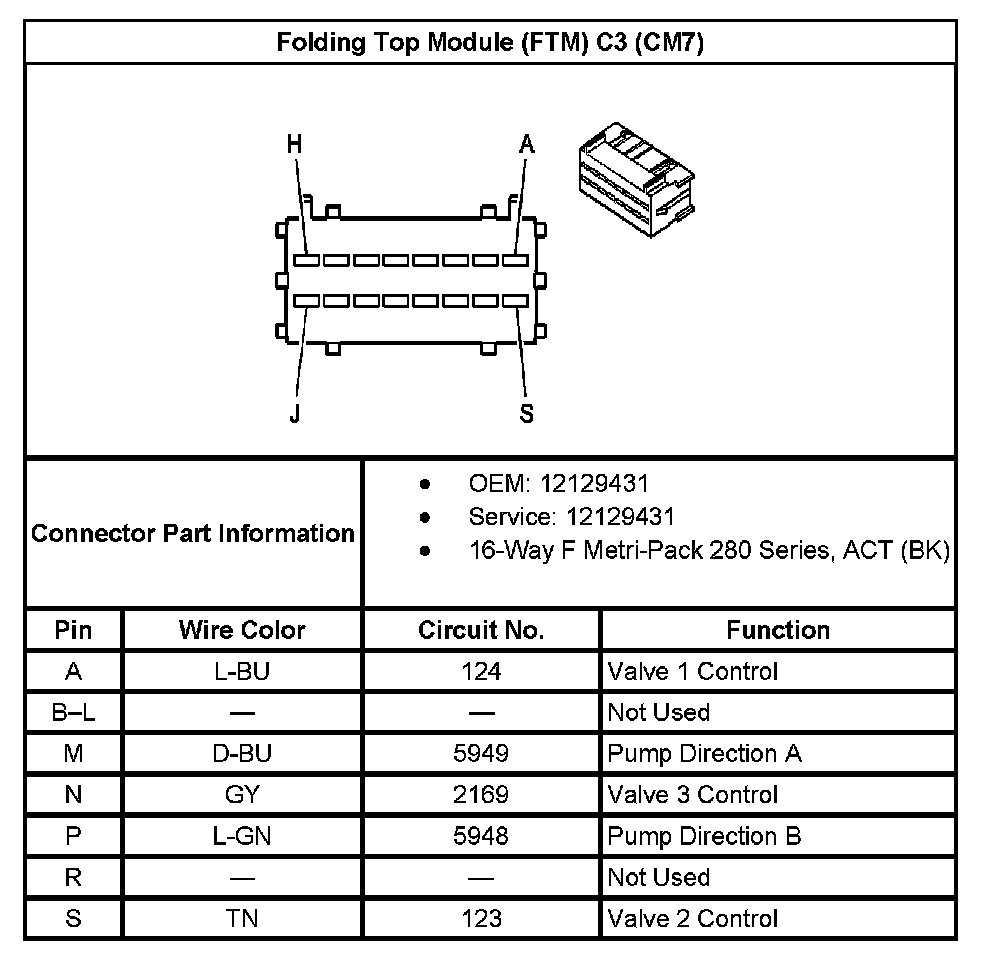

Folding Top Module (FTM) C3 (With RPO Code CM7):
