Seat Replacement

SEAT REPLACEMENT

REMOVAL PROCEDURE
1. Place a protective cover over the sill plate and door trim panel.
2. Tilt the steering wheel full up position.
3. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 7 or to SIR Disabling and Enabling Zone 9 in Restraint Systems.




4. Position the seat rearward.

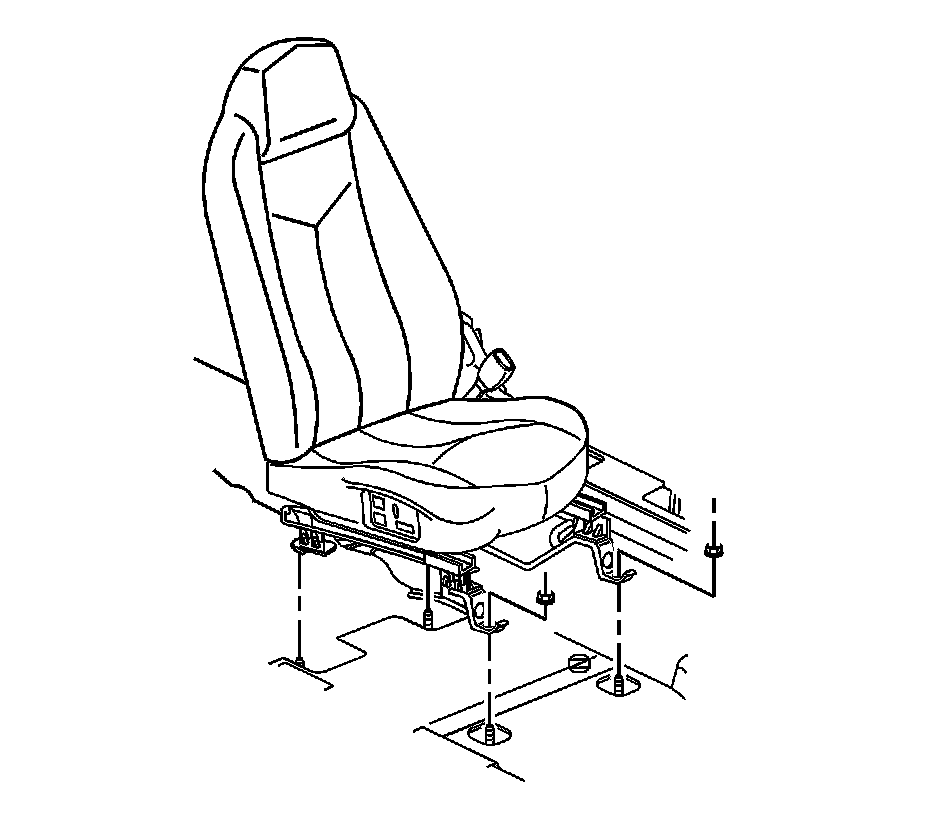

5. Remove the push pins and covers from the front of the adjuster legs.
6. Remove the nuts from the front of the adjuster legs.
7. Position the seat forward.
8. Remove the nuts attaching the rear adjuster legs.
9. Disconnect the seat electrical connectors, if equipped with a power seat.
10. Remove the seatbelt retaining nut and the seatbelt from the anchor stud.
11. With the add of an assistant, remove the seat from the vehicle.

INSTALLATION PROCEDURE




1. Position the seat on the rear studs.
2. Install the seatbelt and the retaining nut to the seat stud.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the nut to 41 Nm (31 lb ft).

3. Connect the electrical connectors, if equipped with a power seat.
4. Install the nuts to the rear studs.

Tighten the nuts to 50 Nm (37 lb ft).

5. Move the seat rearward.
6. Install the nuts to the front adjuster legs.

Tighten the nuts to 50 Nm (37 lb ft).

7. Install the adjuster leg covers.
8. Secure the covers with push pins.
9. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 7 or to SIR Disabling and Enabling Zone 9 in Restraint Systems.
