Reverse Lockout

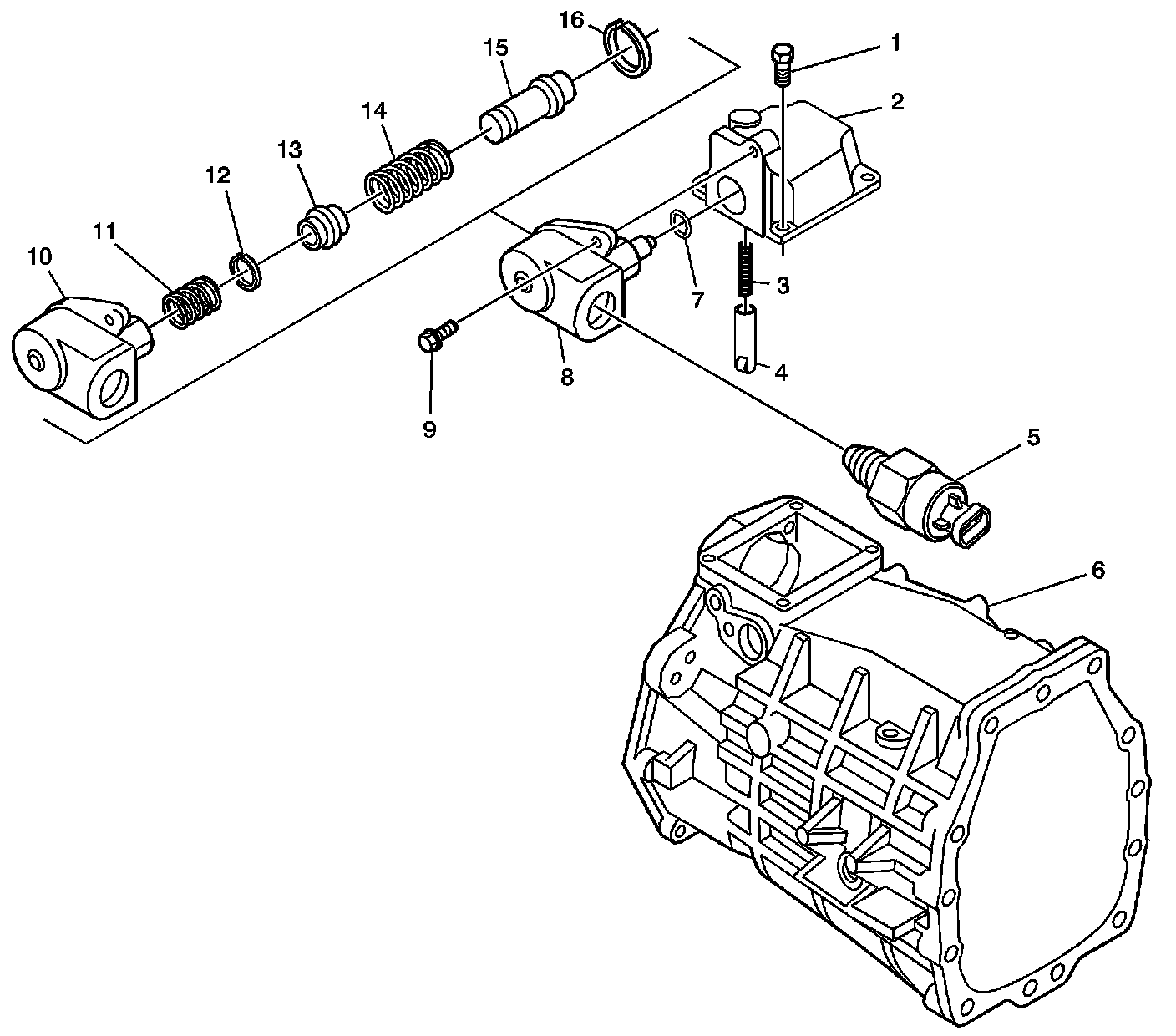

Transmission Component Location (Y Car MM6 and MZ6)

Reverse Lockout:

1 - Transmission Case Cover Bolt
2 - Transmission Case Cover
3 - Spring
4 - Detent Roller
5 - Reverse Lockout Solenoid
6 - Transmission Case
7 - O-ring
8 - Reverse Lockout Assembly
9 - Reverse Lockout Solenoid Mounting Bolt
10 - Reverse Lockout Body
11 - Reverse Lockout Inner Spring
12 - Snap Ring
13 - Reverse Lockout Collar
14 - Reverse Lockout Outer Spring
15 - Reverse Lockout Plunger
16 - Snap Ring
