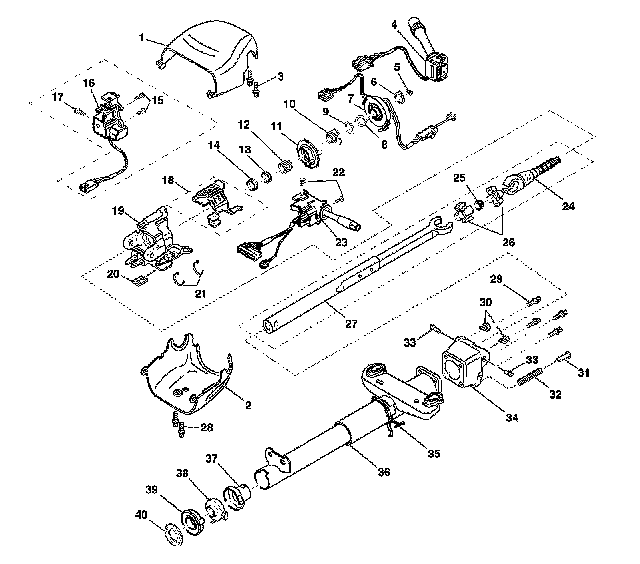

Steering Column Disassembled View (Manual)

Steering Column Disassembled View (Manual)

Tilt Steering Column





1 - Upper Trim Cover
2 - Lower Trim Cover
3 - TORX Head Screws
4 - Windshield Wiper and Washer Switch Assembly
5 - Flanged Prevailing Torque Nut
6 - Retaining Ring
7 - SIR Coil
8 - Wave Washer
9 - Bearing Retainer
10 - Cam Orientation Plate
11 - Turn Signal Cancel Cam Assembly
12 - Upper Bearing Spring
13 - Upper Bearing Inner Race Seat
14 - Inner Race
15 - Pan Head Tapping Screws
16 - Steering Wheel Theft Deterrent Lock
17 - Pan Head Tapping Screw
18 - Wiper/Washer Switch Bracket
19 - Steering Column Tilt Head Housing
20 - Wire Harness Spacer
21 - Wire Harness Straps
22 - Pan Head Tapping Screws
23 - Turn Signal and Multifunction Switch Assembly
24 - Race and Upper Shaft Assembly
25 - Joint Preload Spring
26 - Centering Sphere
27 - Lower Steering Shaft Assembly
28 - TORX Head Screws
29 - TORX Head Screws
30 - Tilt Bumpers
31 - Spring Guide
32 - Tilt Spring
33 - Pivot Pins
34 - Steering Column Support Assembly
35 - Wire Harness Strap
36 - Steering Column Jacket Assembly
37 - Adapter and Bearing Assembly
38 - Steering Wheel Position Sensor Assembly
39 - Sensor Retainer
40 - Steering Shaft Seal
