Electronic Brake Control Module: Service and Repair

Electronic Brake Control Module (EBCM) Replacement
Removal Procedure





1. Turn the ignition switch to the OFF position.
2. Disconnect the electronic brake control module (EBCM) harness connector.

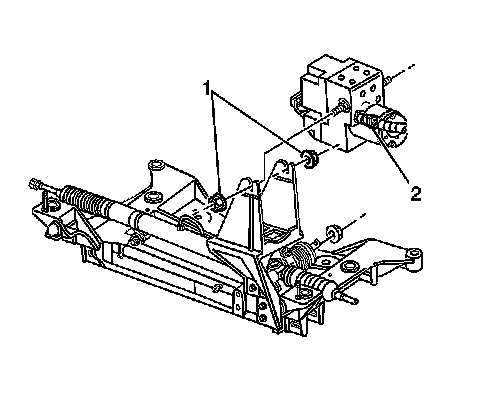

3. Remove the 2 insulator nuts (1).
4. Lift the EBCM/brake pressure modulated valve (BPMV) out of the bracket high enough to allow clearance to remove the insulator mounting bolt and the EBCM.





5. Remove the insulator mounting bolt from the EBCM.
6. Remove the 6 EBCM to BPMV bolts.
7. Separate the EBCM from the BPMV by gently pulling apart until separated.
8. Carefully remove the seal. The seal may by reused if it is not cut or damaged.

Installation Procedure





1. Clean the BPMV seal surface with alcohol using a clean rag.
2. Install the seal to the BPMV if it is not cut or damaged.
3. Install the EBCM to the BPMV.

4. Notice: Refer to Fastener Notice in Service Precautions.

Tighten the 6 mounting bolts in the following sequence:
^ First pass to 3 Nm (27 inch lbs.).
^ Second pass to 6 Nm (53 inch lbs.).

5. Important: If the insulator nut was removed it must be replaced with a new insulator nut.

Install the front EBCM insulator mounting bolt.
Tighten the bolt to 14 Nm (10 ft. lbs.).





6. Install the EBCM/BPMV into the bracket.
7. Install the 2 insulator nuts (1).
Tighten the 2 insulator nuts to 12 Nm (106 inch lbs.).
8. Connect the EBCM harness connector.

Important: Both sides of the EBCM harness connector must be engaged with lever before closing.

9. Turn the ignition switch to the ON position. Do NOT start the engine.
10. Perform the Symptoms - Antilock Brake System.
