SAFETYBulletin No.: 10118
Date: April 23, 2010
Subject: 10118 - "Service Active Handling System" Message in Driver Information Center
Models:
2005-2006 Chevrolet Corvette
Equipped with Tilt and Telescoping Steering Column (N37)
Due to part availability, customers involved in this recall will be notified in phases.
Condition
General Motors has decided that a defect, which relates to motor vehicle safety, exists in certain 2005 and 2006 model year Chevrolet Corvette vehicles equipped with a tilt and telescoping steering column (N37). In rare cases, repeated movement of the steering column may cause a signal interruption within the column. If this occurs, the message, "Service Active Handling System" will appear in the Driver Information Center, and one or more of the brakes may apply, possibly causing the vehicle to pull to the right or left. If the driver does not respond to the change in vehicle movement, a crash could occur.
Correction
Dealers are to inspect the wire connection in the steering column, and if necessary, install an additional clip to secure the wire connection.
Vehicles Involved
Involved are certain 2005 and 2006 model year Chevrolet Corvette vehicles equipped with a tilt and telescoping steering column (N37), and built within these VIN breakpoints:
Important
Dealers are to confirm vehicle eligibility prior to beginning repairs by using GMVIS (dealers using WINS) or the Investigate Vehicle History link (dealers using GWM). Not all vehicles within the above breakpoints may be involved.
For dealers with involved vehicles, a listing with involved vehicles containing the complete vehicle identification number, customer name, and address information has been prepared and will be provided to US and Canadian dealers through the GM GlobalConnect Recall Reports, or sent directly to export dealers. Dealers will not have a report available if they have no involved vehicles currently assigned.
The listing may contain customer names and addresses obtained from Motor Vehicle Registration Records. The use of such motor vehicle registration data for any purpose other than follow-up necessary to complete this recall is a violation of law in several states/provinces/countries. Accordingly, you are urged to limit the use of this report to the follow-up necessary to complete this recall.
Parts Information
Parts required to complete this recall are to be obtained from General Motors Customer Care and Aftersales (GMCC&A). Please refer to your "involved vehicles listing" before ordering parts. Normal orders should be placed on a DRO = Daily Replenishment Order. In an emergency situation, parts should be ordered on a CSO = Customer Special Order.
Service Procedure
1. Remove the driver's side closeout (insulator) panel.
2. Locate the Steering Wheel Position Sensor (SWPS) connector that connects to the steering angle sensor, located on the lower center of the steering column.
Note
Determine if the (SWPS) connector has a clip installed into the connector, or if tape and a band tie was used to prevent movement of the terminals.
- If the SWPS connector has the clip or tape and band tie repair, install the driver's side closeout (insulator) panel. No further action is required.
- If the SWPS connector does NOT have the clip or tape and band tie repair, proceed to Step 3.
3. Install the new clip into the connector. This clip will act as a terminal positive assurance (TPA) and prevent any movement of the terminals.
4. Reinstall the closeout panel.
5. Clear the DTC with a scan tool and road test the vehicle.
6. If DTC C0710 resets during the road test, refer to DTC C0710 in SI.
Customer Reimbursement - For GM US
All customer requests for reimbursement of previously paid repairs for the recall condition will be handled by the Customer Assistance Center, not by dealers.
A General Motors Customer Reimbursement Procedure and Claim Form is included with the customer letter.
Important
(For GM US Only) Refer to the GM Service Policies and Procedures Manual, section 6.1.12, for specific procedures regarding customer reimbursement and the form.
Customer Reimbursement - For Canada and Export
Customer requests for reimbursement of previously paid repairs for the recall condition are to be submitted to the dealer by May 31, 2011.
All reasonable customer paid receipts should be considered for reimbursement. The amount to be reimbursed will be limited to the amount the repair would have cost if completed by an authorized General Motors dealer.
When a customer requests reimbursement, they must provide the following:
- Proof of ownership at time of repair.
- Original paid receipt confirming the amount of repair expense(s) that were not reimbursed, a description of the repair, and the person or entity performing the repair.
Claims for customer reimbursement on previously paid repairs are to be submitted as required by WINS or GWM.
Important
Refer to the GM Service Policies and Procedures Manual, section 6.1.12, for specific procedures regarding customer reimbursement verification.
Claim Information

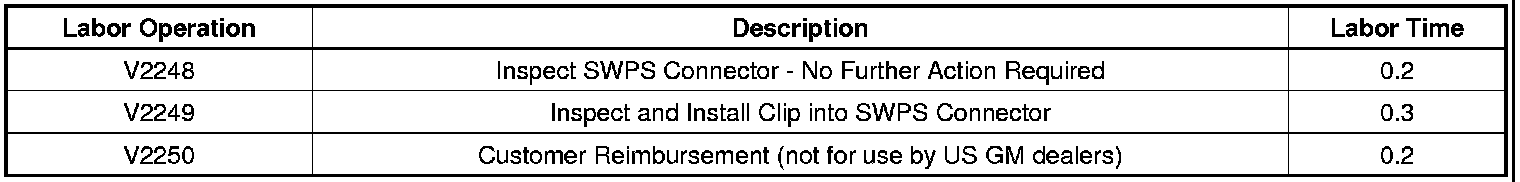

1. Submit a claim using the table below.
Customer Notification - For US and Canada
General Motors will notify customers of this recall on their vehicle (see copy of customer letter included with this bulletin).
Customer Notification - For Export
Letters will be sent to known owners of record located within areas covered by the US National Traffic and Motor Vehicle Safety Act. For owners outside these areas, dealers should notify customers using the attached sample letter.
Dealer Recall Responsibility - For US and Export (US States, Territories, and Possessions)
The US National Traffic and Motor Vehicle Safety Act provides that each vehicle that is subject to a recall of this type must be adequately repaired within a reasonable time after the customer has tendered it for repair. A failure to repair within sixty days after tender of a vehicle is prima facie evidence of failure to repair within a reasonable time. If the condition is not adequately repaired within a reasonable time, the customer may be entitled to an identical or reasonably equivalent vehicle at no charge or to a refund of the purchase price less a reasonable allowance for depreciation. To avoid having to provide these burdensome remedies, every effort must be made to promptly schedule an appointment with each customer and to repair their vehicle as soon as possible. In the recall notification letters, customers are told how to contact the US National Highway Traffic Safety Administration if the recall is not completed within a reasonable time.
Dealer Recall Responsibility - All
All unsold new vehicles in dealers' possession and subject to this recall must be held and inspected/repaired per the service procedure of this recall bulletin before customers take possession of these vehicles.
Dealers are to service all vehicles subject to this recall at no charge to customers, regardless of mileage, age of vehicle, or ownership, from this time forward.
Customers who have recently purchased vehicles sold from your vehicle inventory, and for which there is no customer information indicated on the dealer listing, are to be contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. A copy of the customer letter is provided in this bulletin for your use in contacting customers. Recall follow-up cards should not be used for this purpose, since the customer may not as yet have received the notification letter.
In summary, whenever a vehicle subject to this recall enters your vehicle inventory, or is in your dealership for service in the future, you must take the steps necessary to be sure the recall correction has been made before selling or releasing the vehicle.
