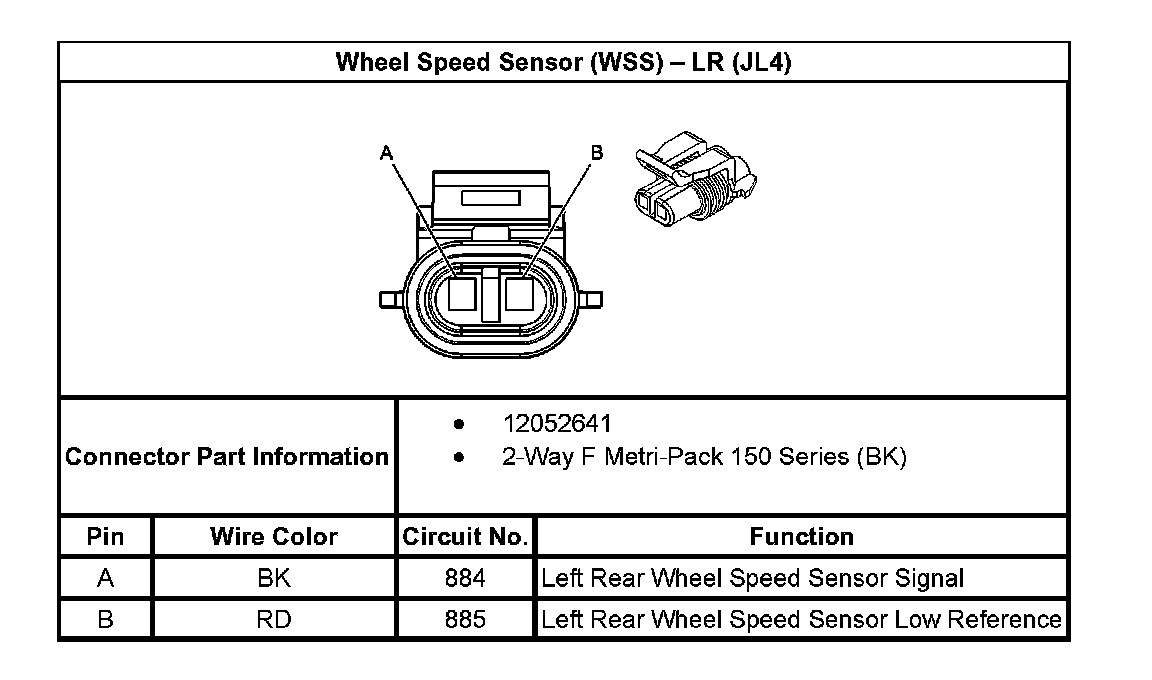

Wheel Speed Sensor (WSS) - LR (JL4)
Wheel Speed Sensor (WSS) - LR (JL4)
Wheel Speed Sensor (WSS) - LR (JL4):
