Powertrain Control Module (PCM)

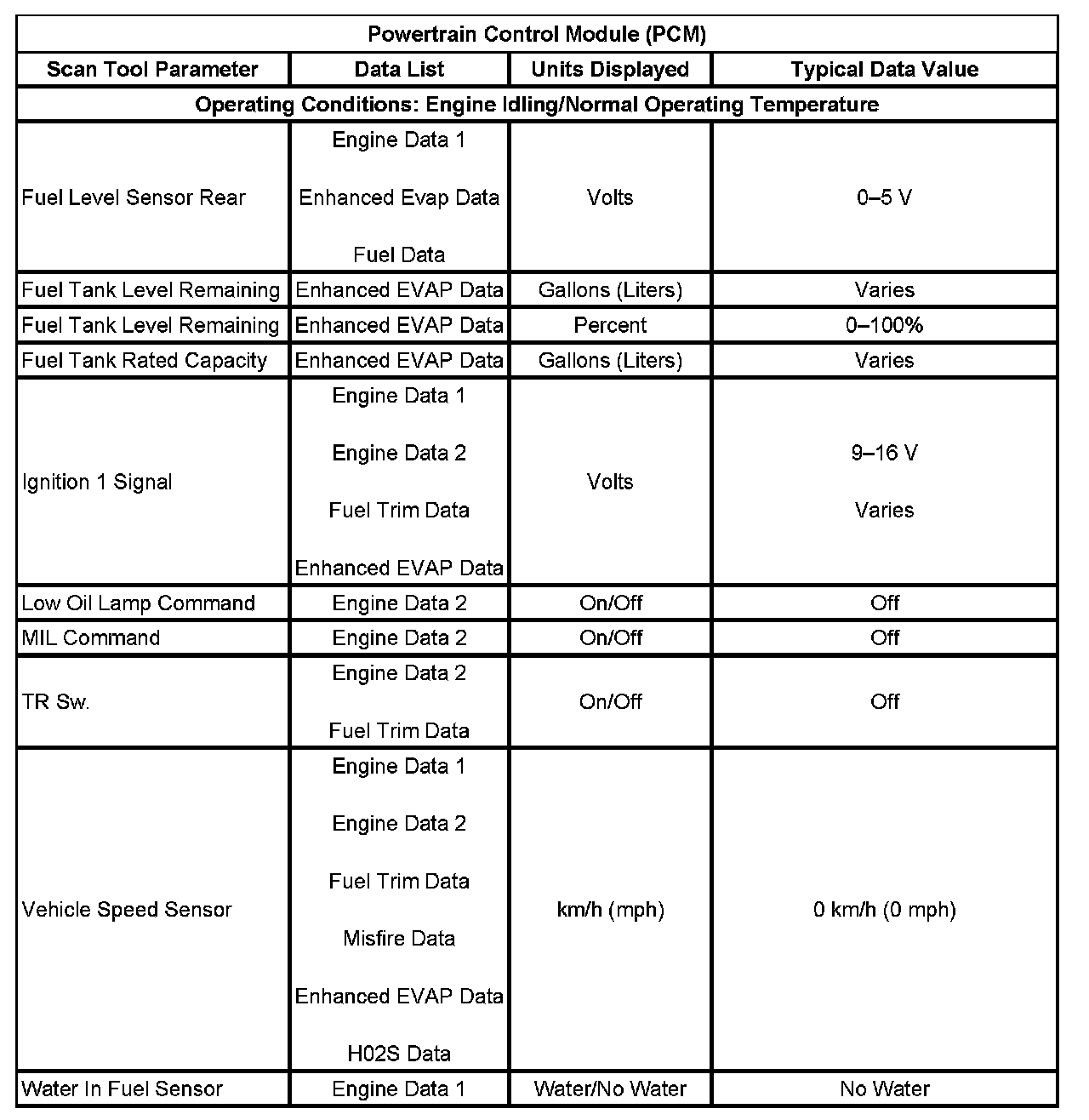

Powertrain Control Module (PCM) (Part 1):



Powertrain Control Module (PCM) (Part 2):
