Front Fender Extension Replacement

Fender Extension Replacement - Front

Removal Procedure

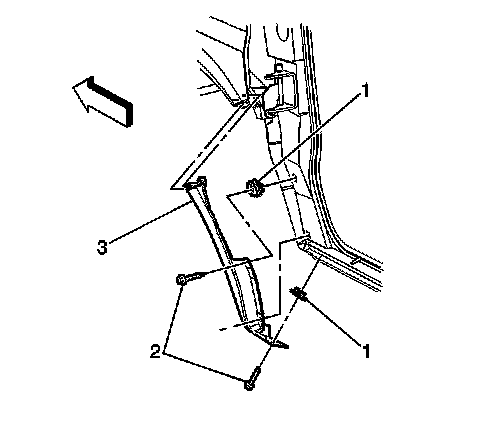

1. Remove the bolt (2) retaining the front fender extension (3) to the body.
2. Remove the bolt (2) retaining the front fender extension (3) to the rocker panel.
3. Remove the front fender extension (3) from the body.

Installation Procedure




1. Install the front fender extension (3) to the body.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the bolts (2) in order to retain the front fender extension (3) to the body.

Tighten the bolts to 11 N.m (97 lb in).

3. Install the bolt in order to retain the front fender extension to the rocker panel.

Tighten the bolt to the rocker panel to 2 N.m (18 lb in).
