Without Throttle Actuator Control



CRUISE CONTROL INOPERATIVE/MALFUNCTIONING (WITHOUT THROTTLE ACTUATOR CONTROL)

DIAGNOSTIC AIDS
To avoid a misdiagnosis, inspect for the following:
- Proper operation of the stop lamps-Refer to Exterior Lighting Systems Description and Operation in Lighting Systems.
- Proper adjustment of the cruise control cable-Refer to Cruise Control Cable Adjustment.
- The throttle linkage is not binding.

Electromagnetic interference on the speed sensor signal circuit may cause erratic cruise control operation.

For an intermittent condition,

CONDITIONS FOR ENABLING CRUISE CONTROL
- The vehicle speed is greater than 40 km/h (25 mph).
- The vehicle is not in PARK, REVERSE, NEUTRAL, or 1st gear.
- The system voltage is within 9-16 volts.

TEST

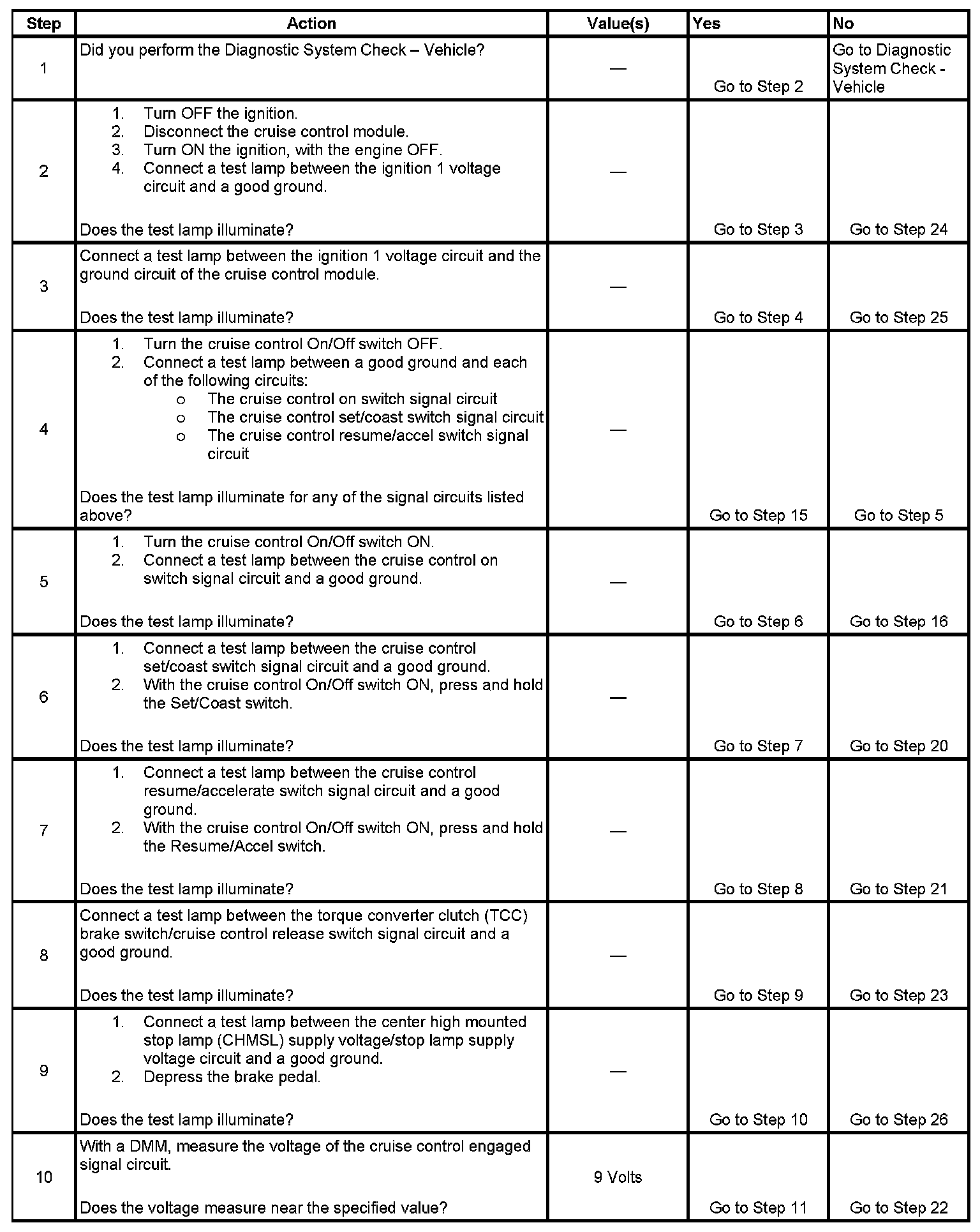

Step 1 - Step 10:

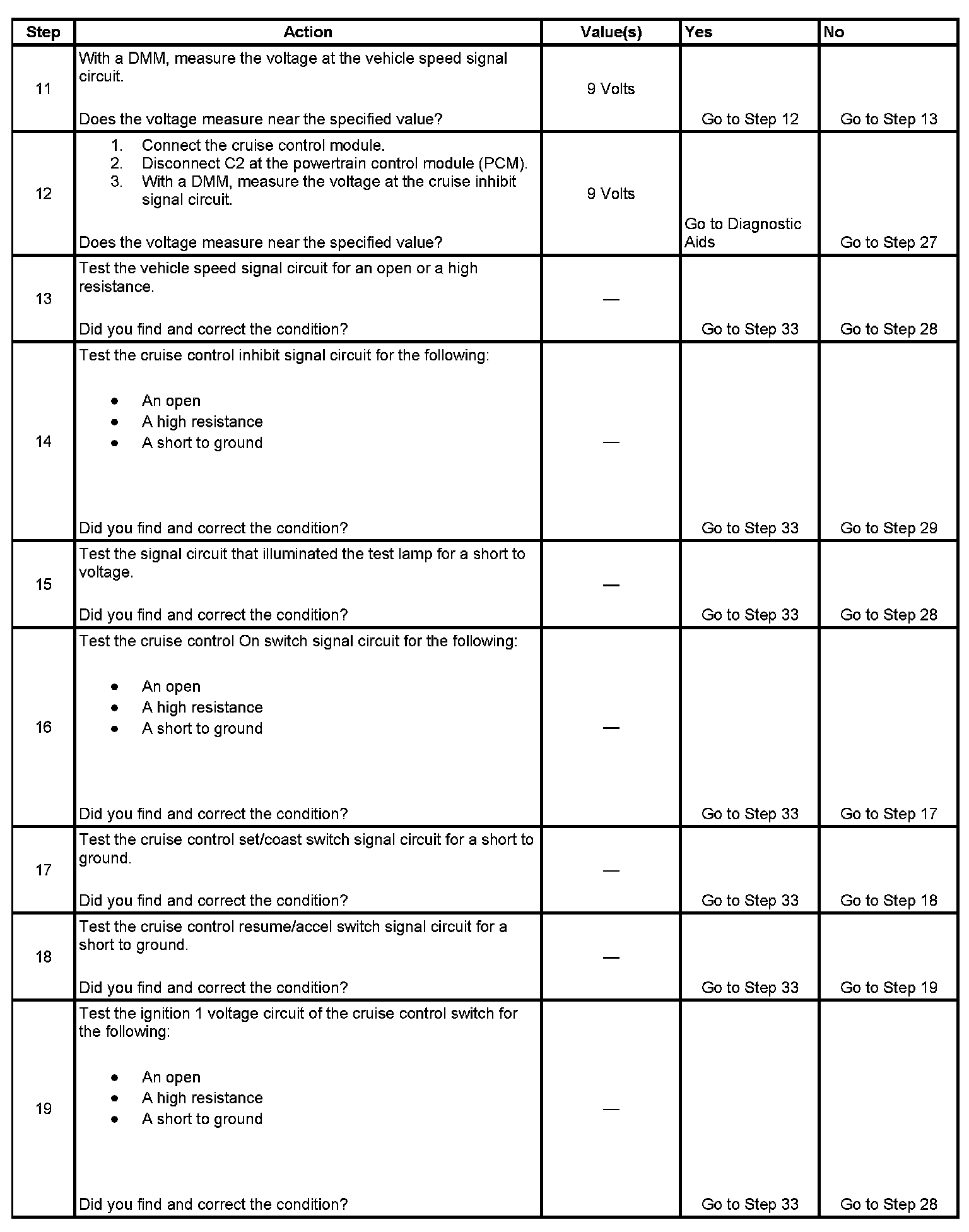

Step 11 - Step 19:

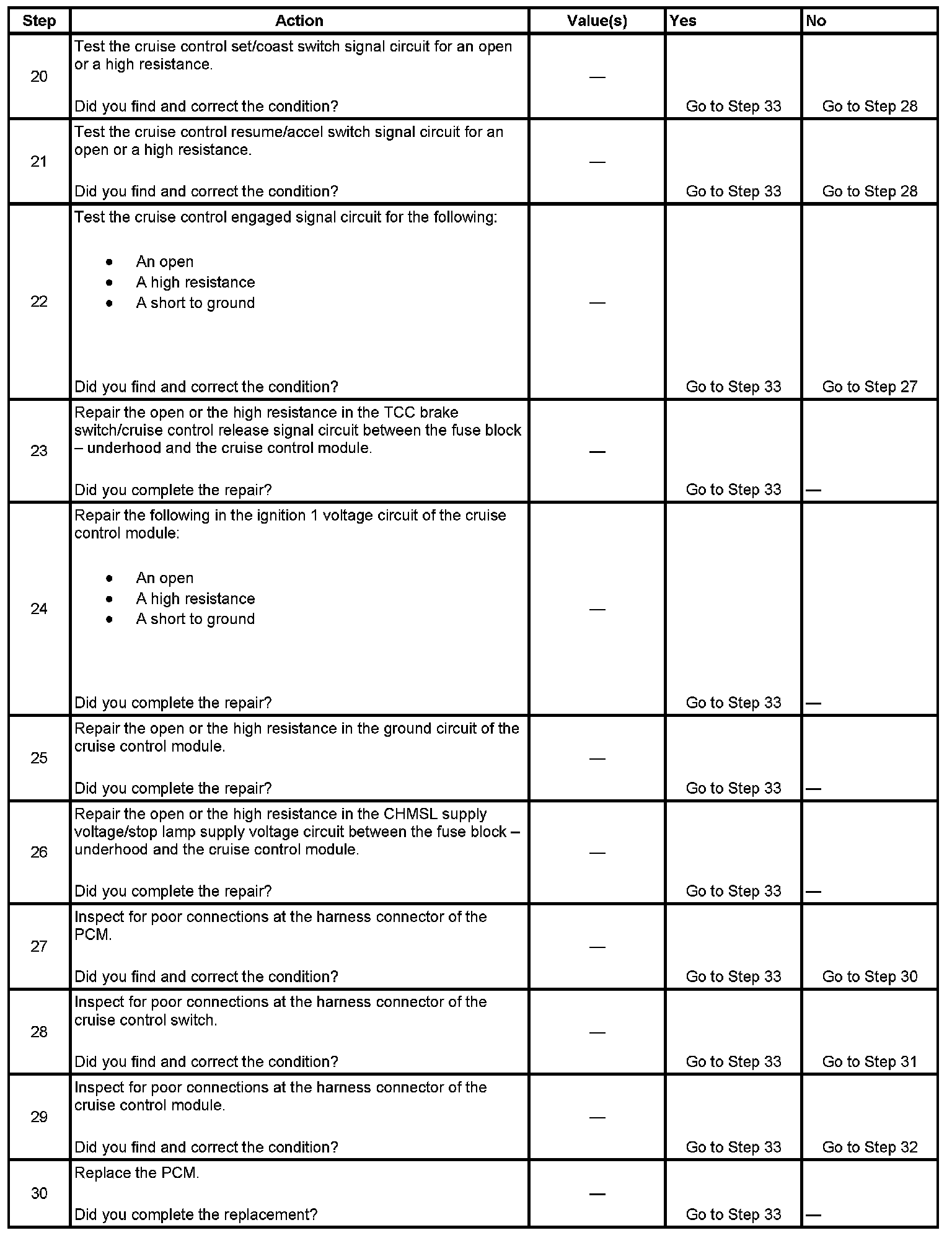

Step 20 - Step 30:

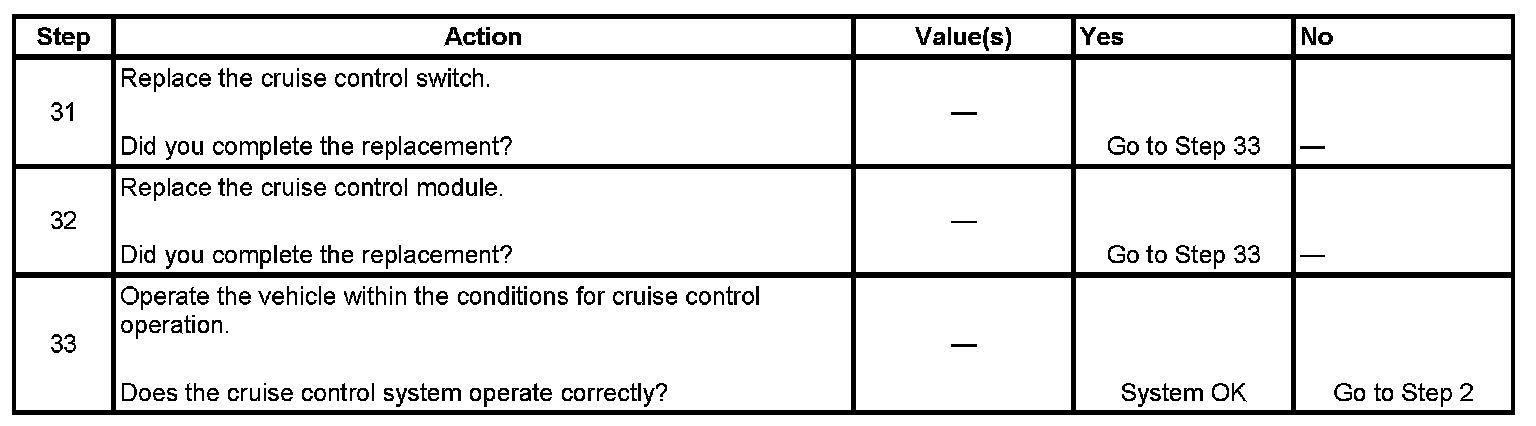

Step 31 - Step 33:
