Battery Positive Cable Replacement



BATTERY POSITIVE CABLE REPLACEMENT (PRIMARY)

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution.

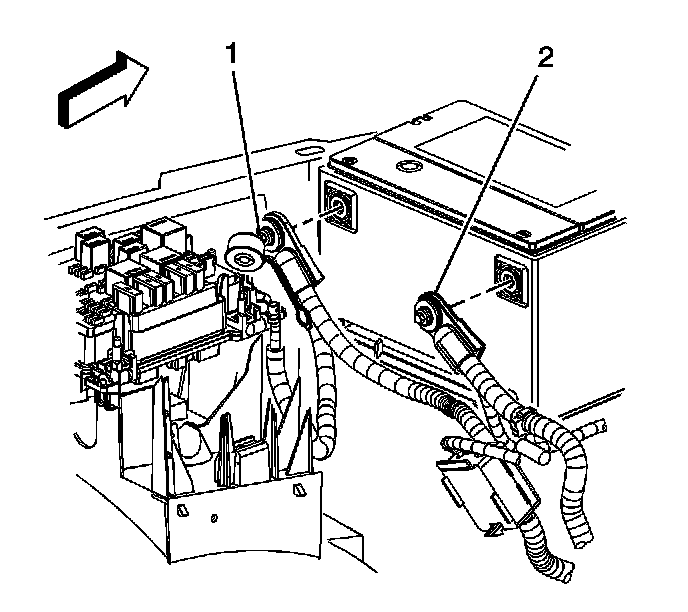

1. Disconnect the negative battery cable (2).
2. Unsnap the positive battery cable cap.
3. Disconnect the positive battery cable (1).




4. Remove the positive cable (1) from the junction block.

INSTALLATION PROCEDURE




1. Install the positive battery cable.




2. Install the positive cable (1) to the junction block.




3. Connect the positive battery cable (1).

Tighten the bolt to 17 N.m (13 lb ft).

NOTE: Refer to Fastener Notice.

4. Snap the positive battery cable cap closed.
5. Connect the negative battery cable (2).
