WIPER ARM BLADE REPLACEMENT - REAR

REMOVAL PROCEDURE
1. Place the wiper arm in the mid-wipe position.




2. Lift the wiper arm off the park ramp.

IMPORTANT: Do not allow the wiper arm to fall back and strike the endgate.

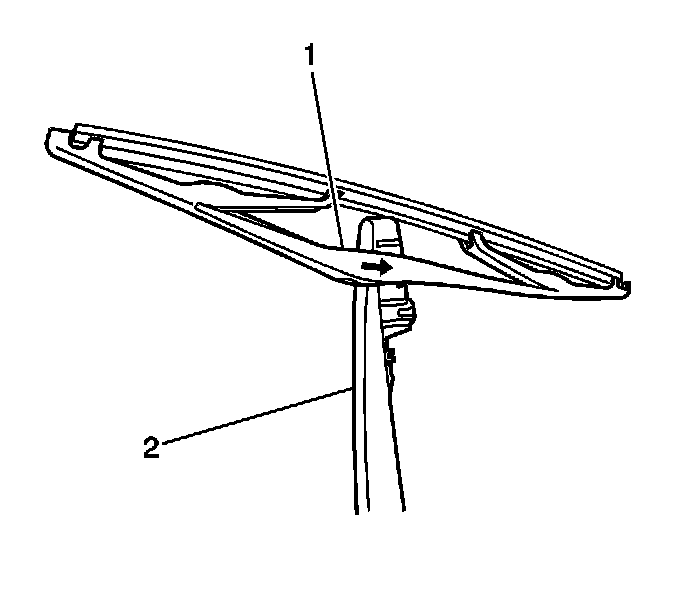

3. Move the blade in a horizontal position to the arm (2) and push the blade (1) away from the wiper arm in order to release.

IMPORTANT: The wiper blade attaches to the wiper arm by the use of a cam-type attachment.

4. Remove the wiper blade from the wiper arm.

INSTALLATION PROCEDURE

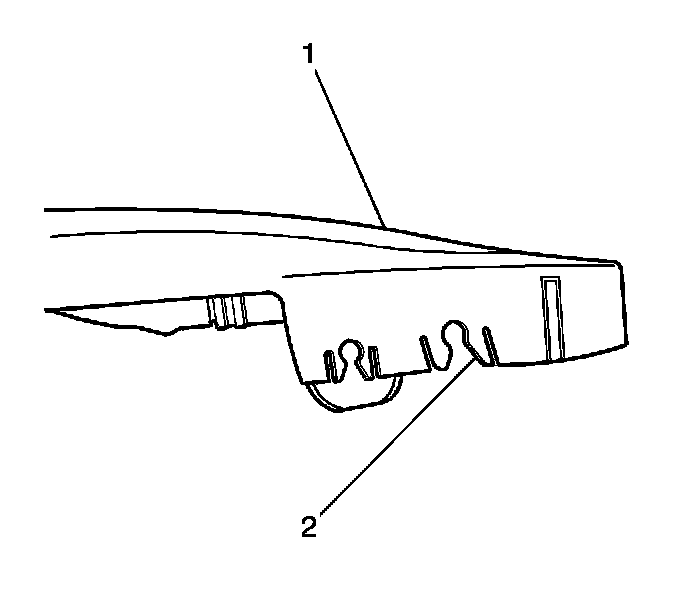

1. Position the wiper blade in a horizontal position to the slot (2) in the wiper arm.




2. Hold the wiper arm and apply inward pressure to the wiper arm (1) in order to secure the wiper blade (3) to the wiper arm.
3. Carefully lower the wiper arm and blade onto the endgate glass.
4. Park the rear wiper arm.
