B3794

DTC B3794

CIRCUIT DESCRIPTION
The cruise control switch is an input to the body control module (BCM). The BCM monitors the cruise control set/coast and resume/accelerate switch signal circuit in order to detect when the driver has requested to perform a cruise control function. The BCM detects a specific voltage signal on the cruise control set/coast and resume/accelerate switch signal circuit when a switch is applied.

DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:

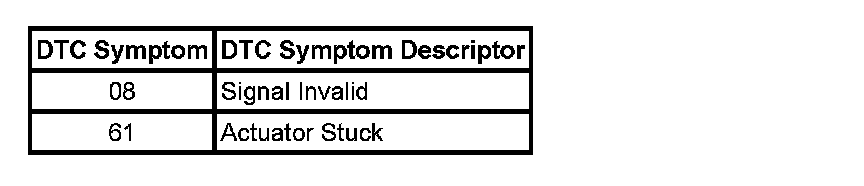

DTC B3794 Cruise Control Function Request Circuit






CONDITIONS FOR RUNNING THE DTC
- The cruise switch is ON.
- The ignition is ON.

CONDITIONS FOR SETTING THE DTC
- The BCM detects an invalid voltage signal on the cruise control + RES switch and - SET switch signal circuit.
- The above condition is present for 0.5 second.

ACTION TAKEN WHEN THE DTC SETS
- The BCM stores the DTC information into memory when the diagnostic runs and fails.
- The malfunction indicator lamp (MIL) will not illuminate.
- The Cruise Control System is disabled.

CONDITIONS FOR CLEARING THE DTC
- The DTC becomes history when the fault is no longer present.
- A History DTC clears after 100 malfunction-free ignition cycles.
- The BCM receives a clear code command from the scan tool.

DIAGNOSTIC AIDS
For an intermittent, refer to Testing for Intermittent Conditions and Poor Connections. Component Tests and General Diagnostics

TEST

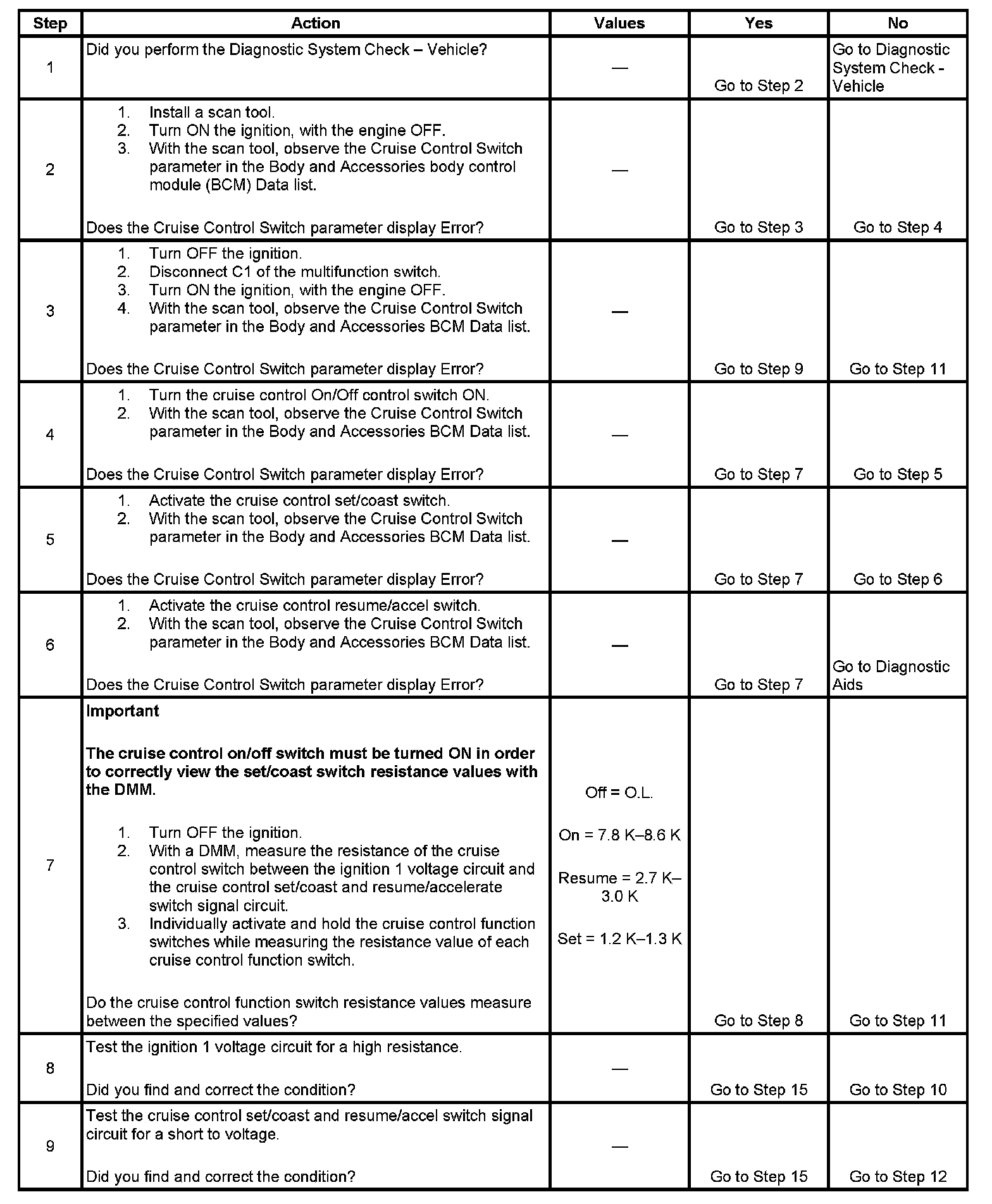

Step 1 - Step 9:

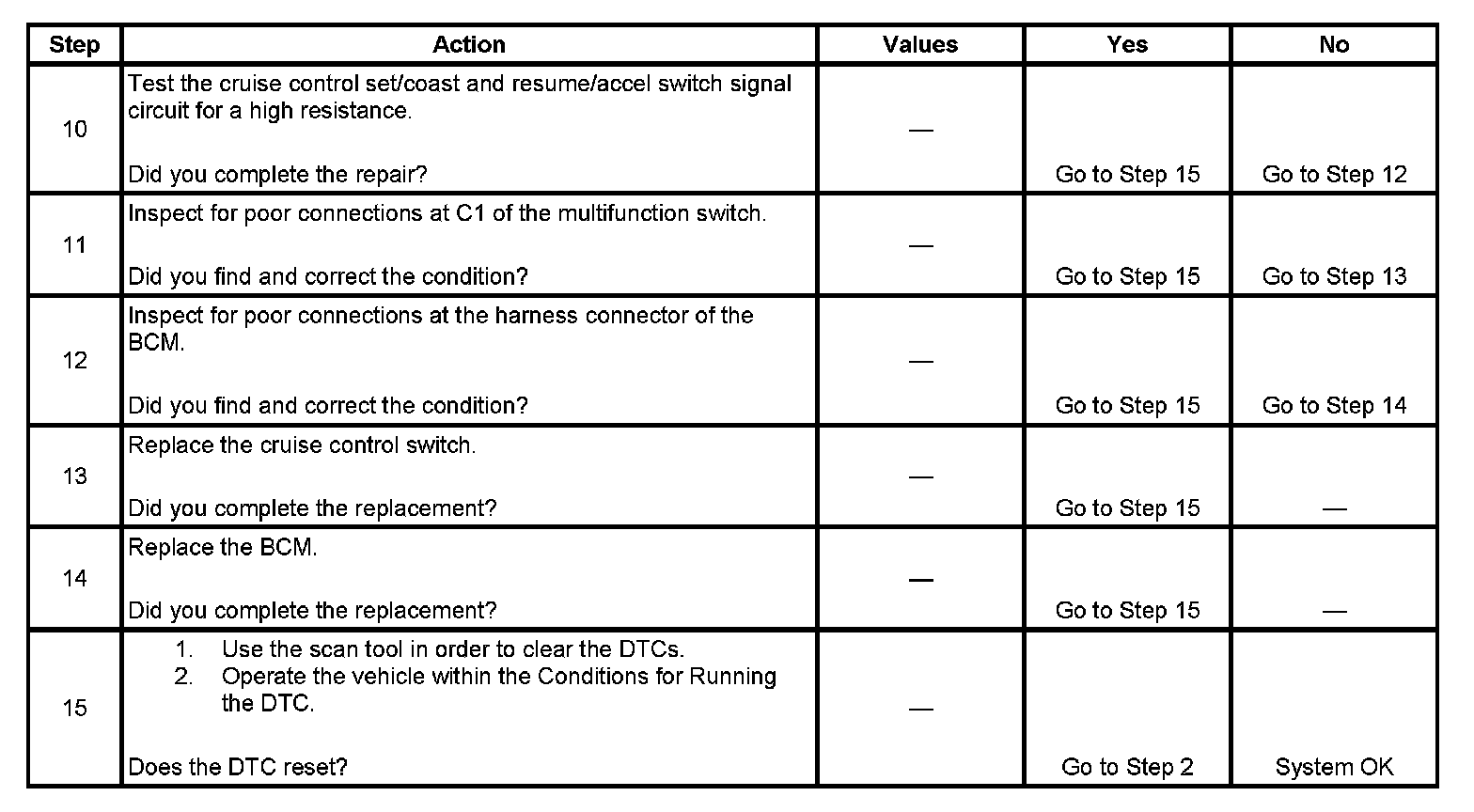

Step 10 - Step 15:
