Home
>>
Chevrolet
>>
2006
>>
Impala V8-5.3L VIN C
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Connector Views
>>
Terminator Resistor
Terminator Resistor

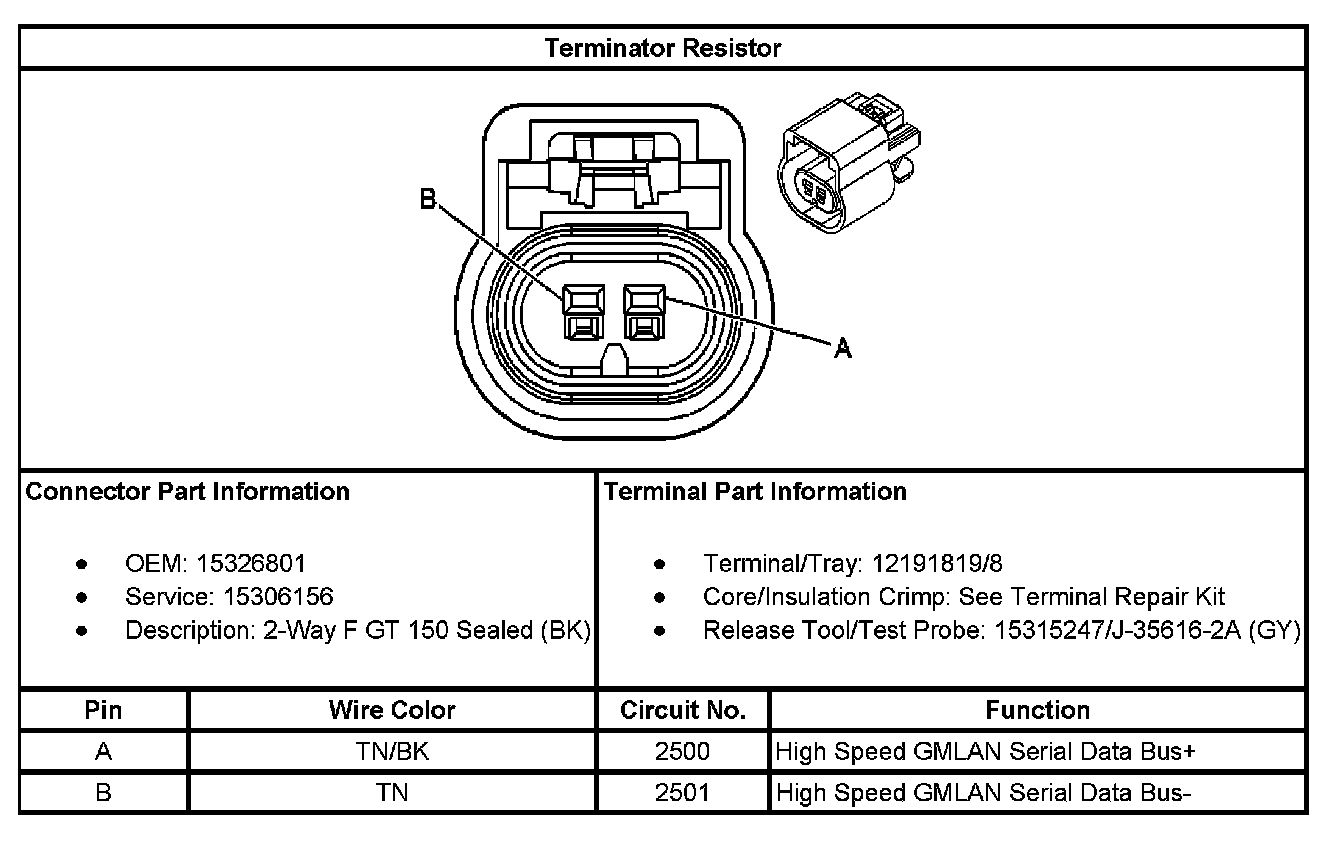

Terminator Resistor:
